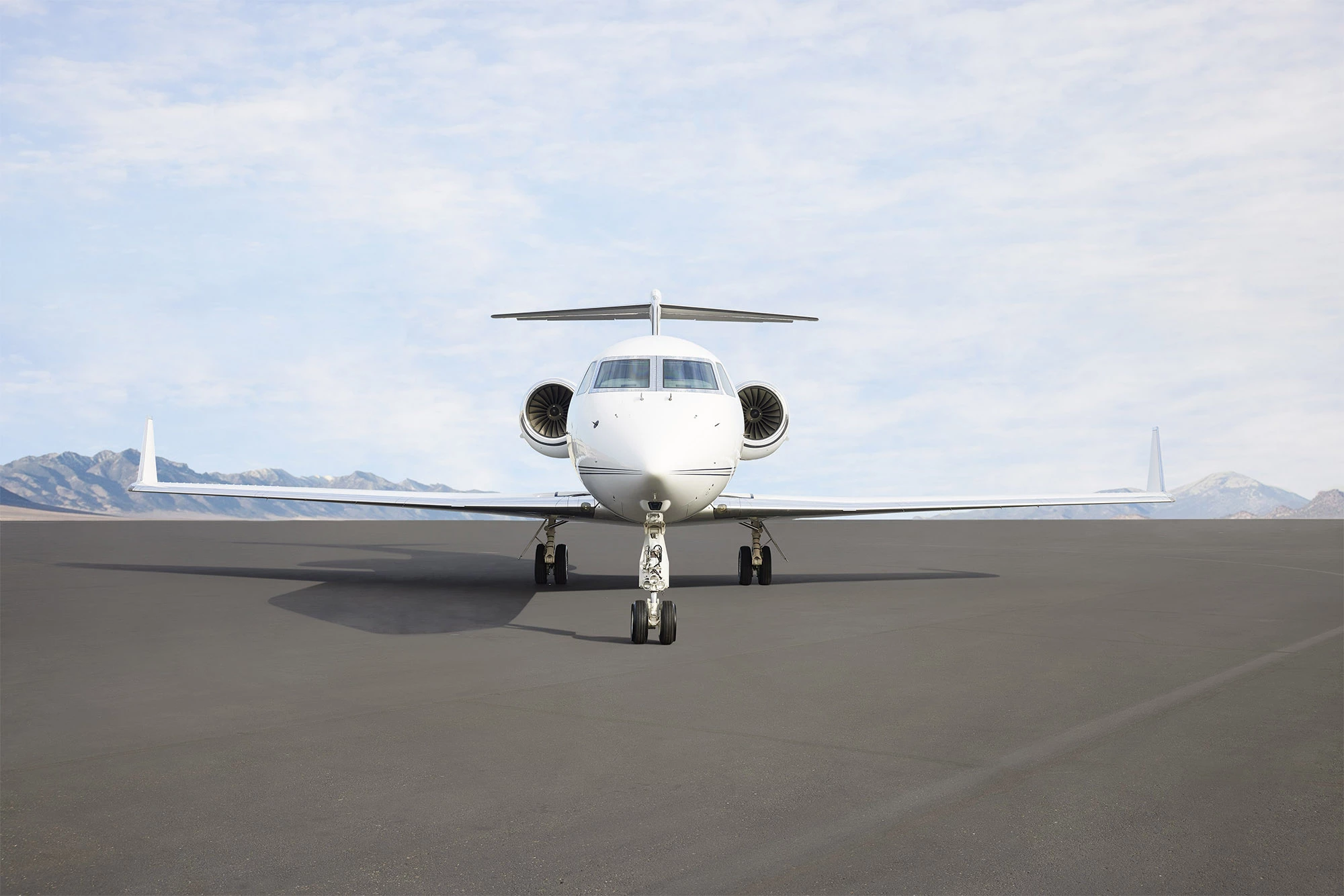

Gulfstream G450

Complete Refurbishment in January 2015 @ Gulfstream - Appleton
Twelve (12) Passenger Aft Galley Executive Floorplan Interior.

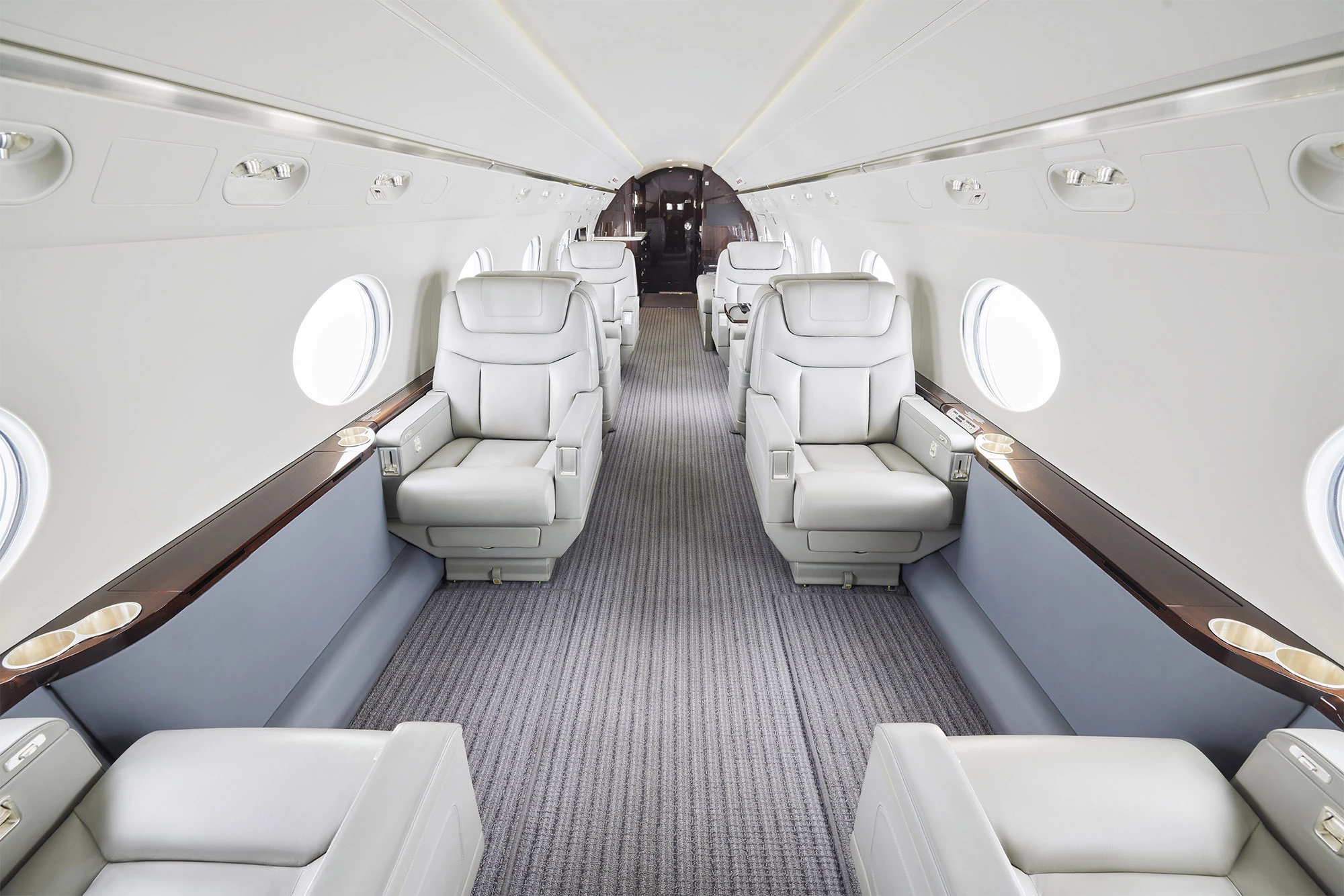

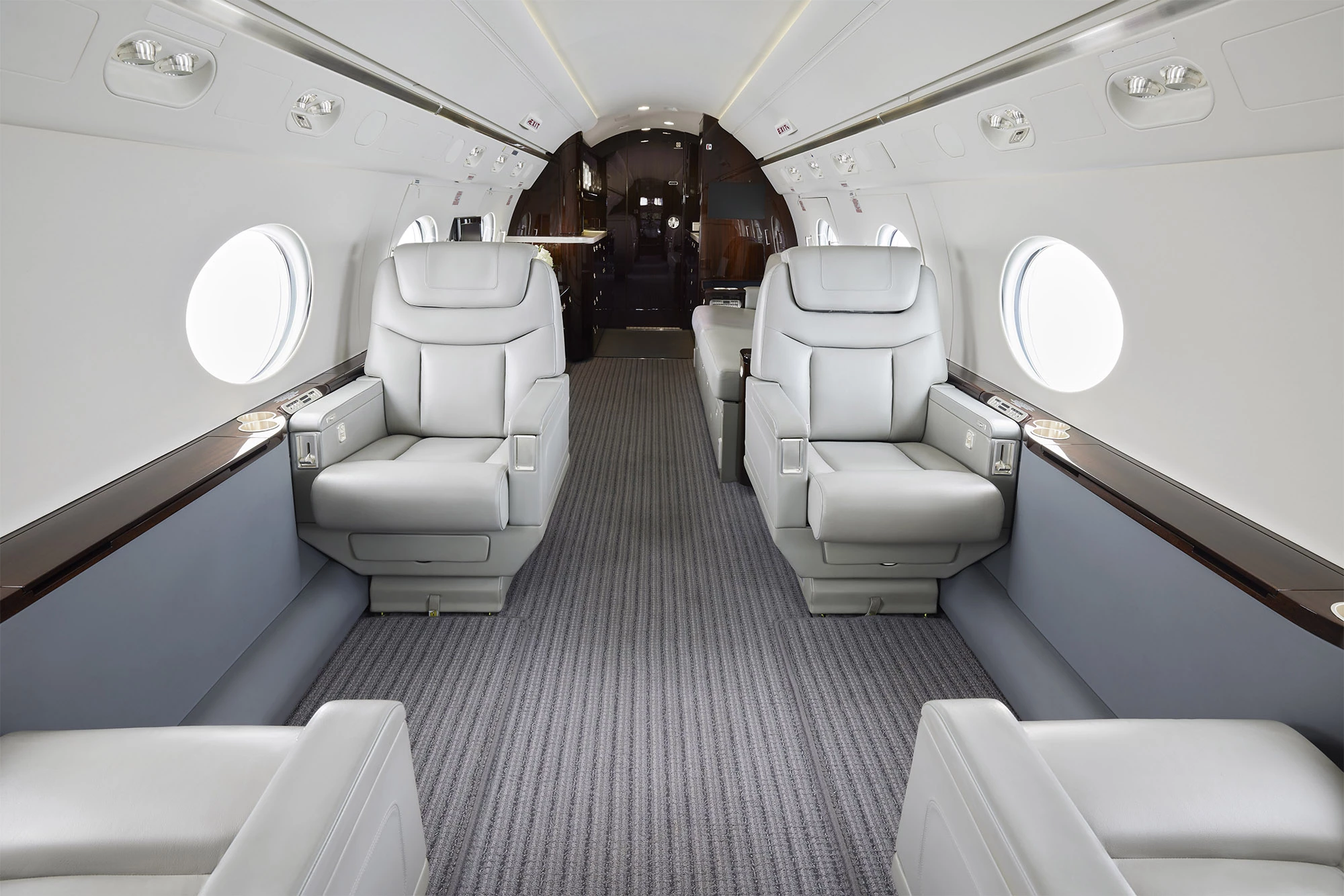

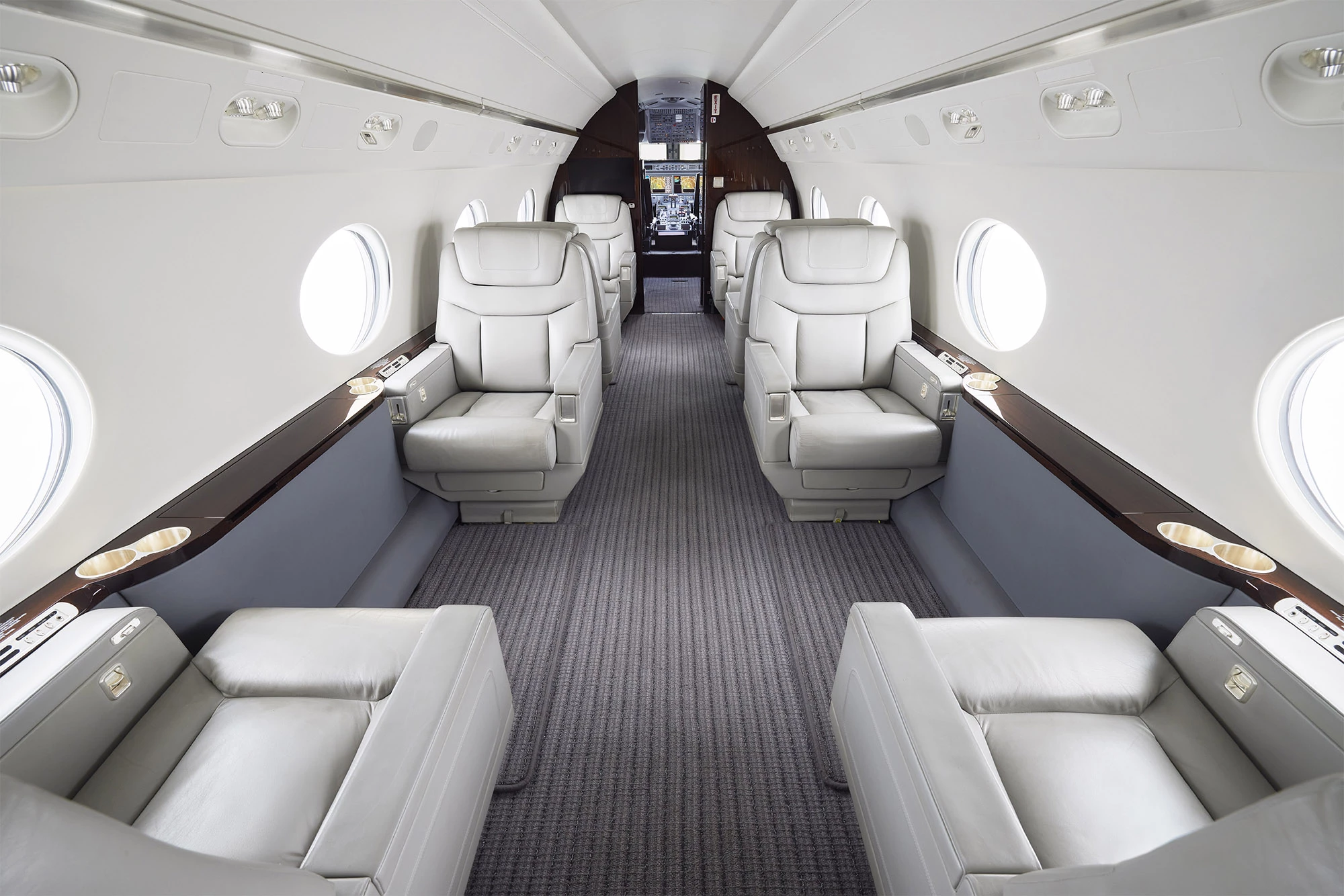

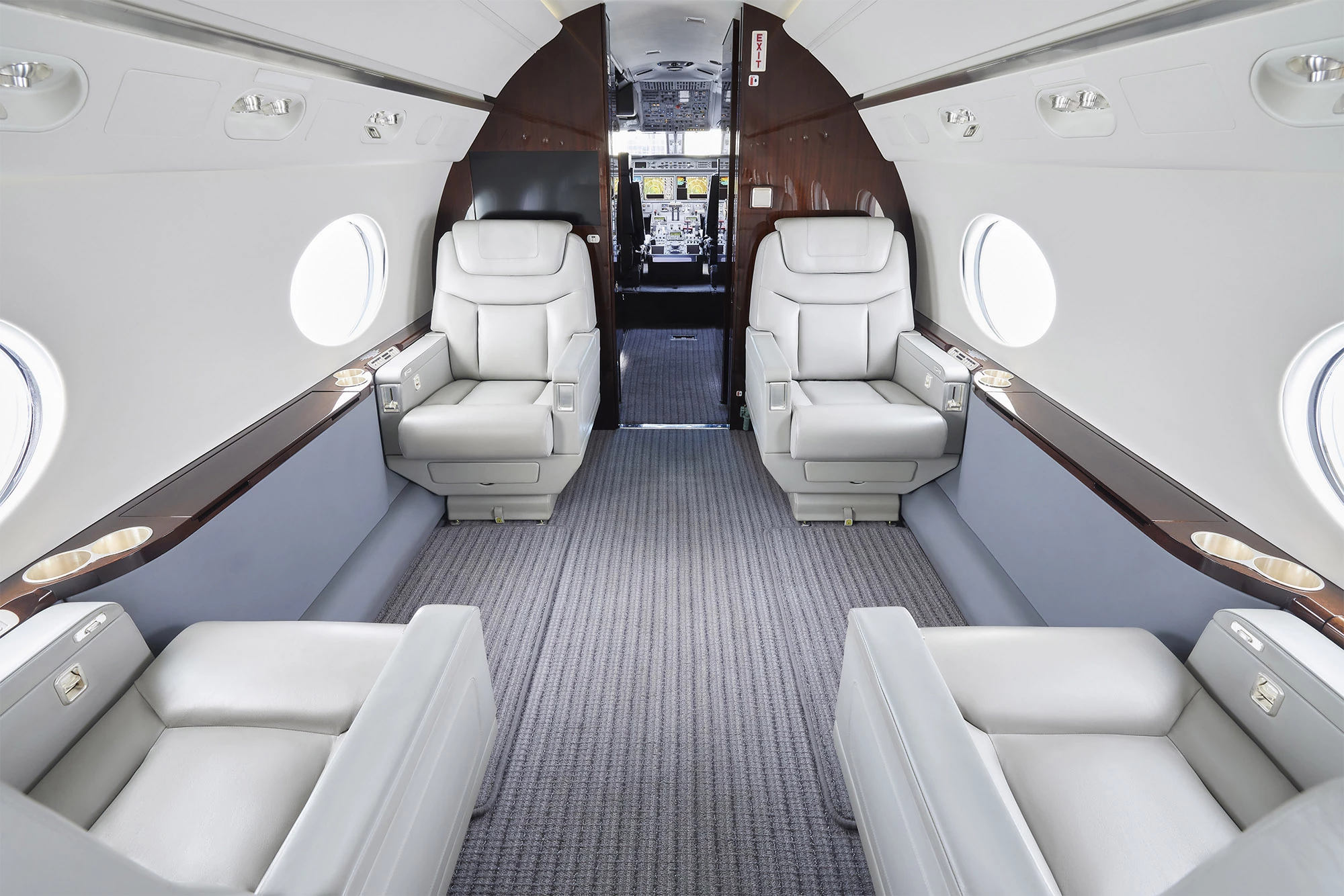

The main cabin features a forward-cabin 4-place club, a mid-cabin 4-place club,
and aft-cabin 4-place berthable divans opposite a credenza. The forward-cabin

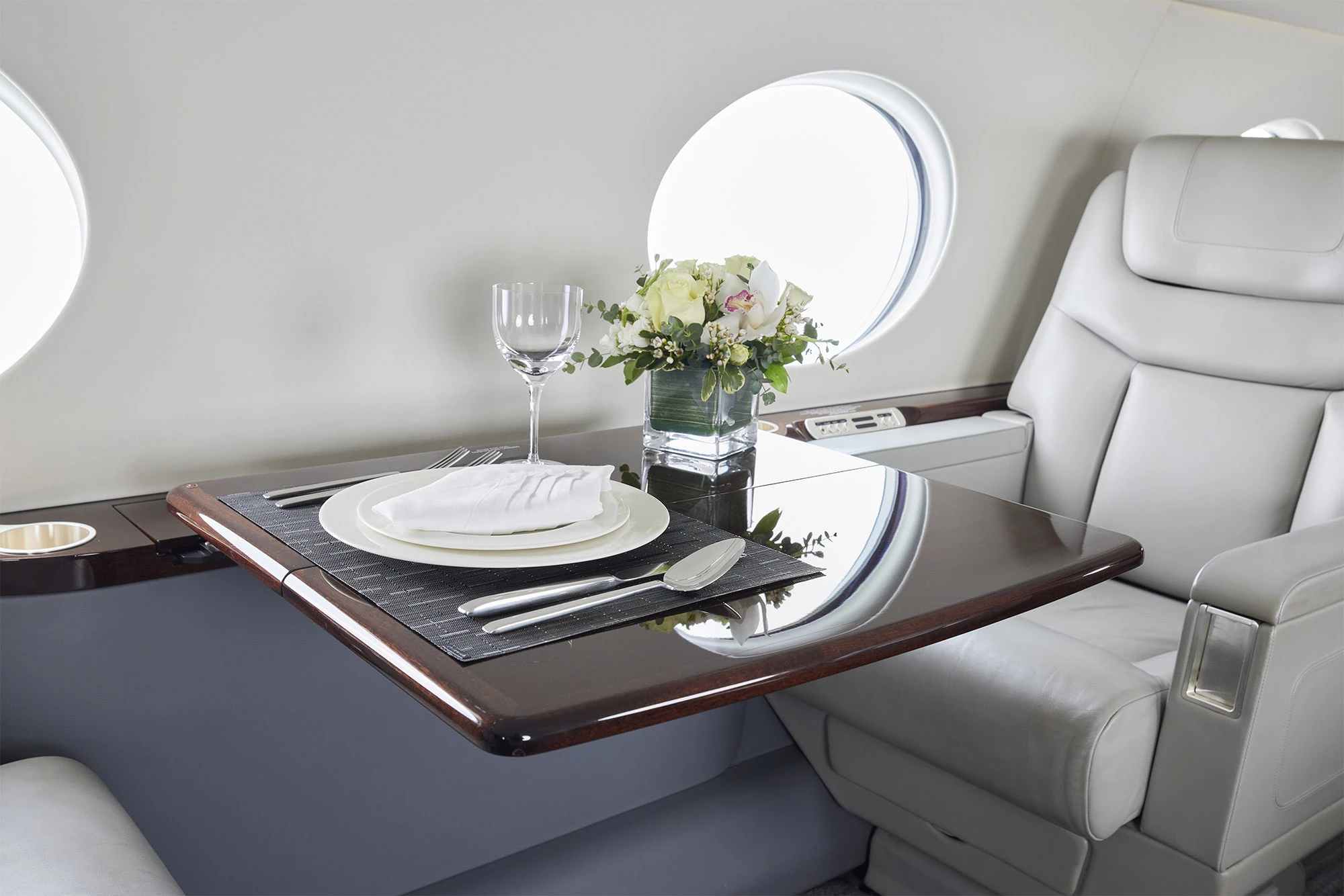

and mid-cabin 4-place clubs include stowable executive writing and dining
tables. The club chairs and divan are upholstered in a medium tone gray leather,
complemented by a gray carpet. The wood/cabinetry is a marbled walnut veneer
complemented by nickel plating on all hardware.

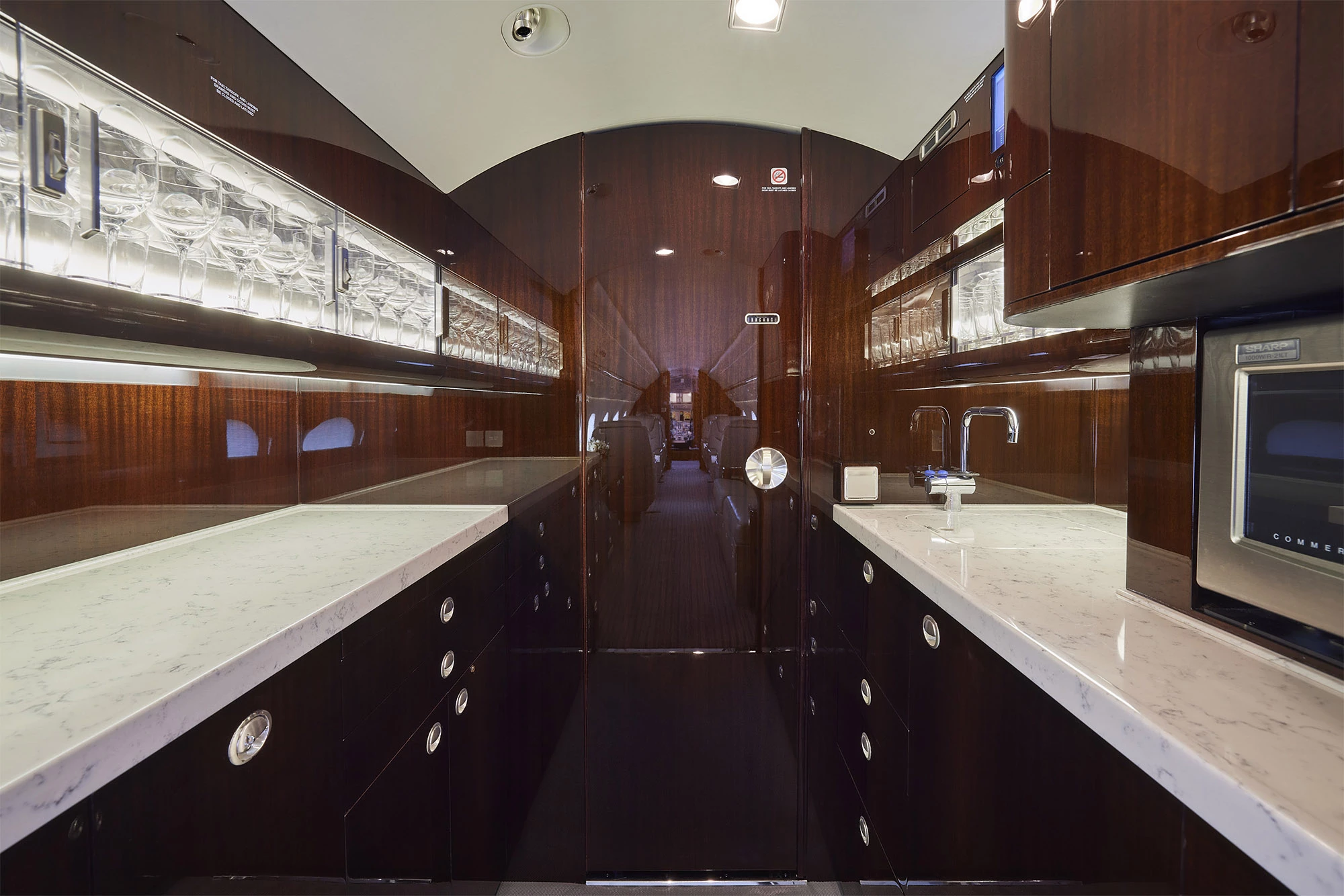

The full service Aft Galley is equipped to provide full meal and beverage services
to passengers. The left-hand side Galley features a sink with faucet assembly,
sink cover/cutting board, in-line water heater, TIA Coffee machine, Sharp microwave
oven, Enflite high-temperature oven, crystal storage, cutlery storage,
and waste container. The right-hand side Galley Annex is equipped with an ice
compartment, canned drink storage, food storage compartment, crystal storage,
miscellaneous storage, china storage, and dirty dish drawer.

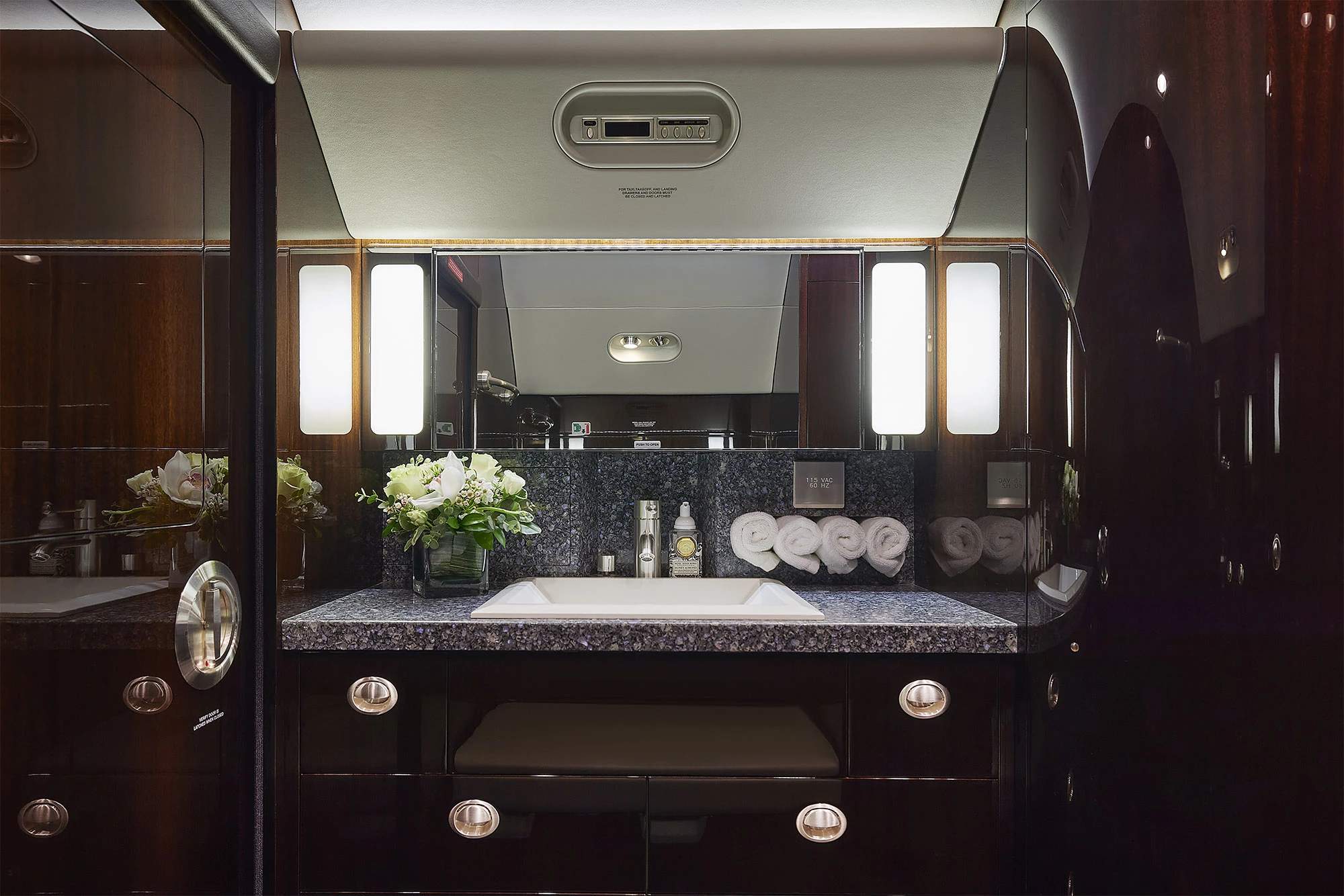

The private aft lavatory and dressing area features a mirrored, lighted vanity,
sink, central vacuum style flushing toilet, ample closet and storage areas, and
in-flight accessibility to the spacious walk-in aft baggage compartment. There is
a forward crew lav. Two (2) Winslow 14-man life rafts with triple-frequency ELT
(beneath divan).

Cabin entertainment includes SpaceX Starlink Hi-Speed Internet Service & Wi-
Fi via a wireless LAN, a Two Disc Dual DVD player, and Airshow which can be
viewed on Three (3) LCD color monitors - One (1) 24” LCD Monitor in the Left-
Hand Forward Cabin Bulkhead, One (1) 19” LCD Monitor in the Left-Hand Aft Cabin
Bulkhead, one (1) 18” LCD Monitor mounted above credenza - and on Eight (8)
9” LCD Personal Monitors in Each of the Eight (8) Single Seat Inboard Armrests.
The Aircell Axxess II Iridium satellite communications system 2-channel digital
phone provides direct dial (voice and data), air-to-ground, and ground-to-air call
feature

ENTERTAINMENT:

SpaceX Starlink Hi-Speed Internet Service & Wi-Fi (IAW Nextant STC ST04611CH)
Satcom Direct Router (SDR)
Airshow System
Two Disk Dual DVD Player
Three External Cameras
Eight 9” LCD Seat Monitors at Club Seats
18” Sidewall Monitor at Aft Credenza
19” LH Aft Bulkhead Monitor
24” LH Forward Bulkhead Monitor

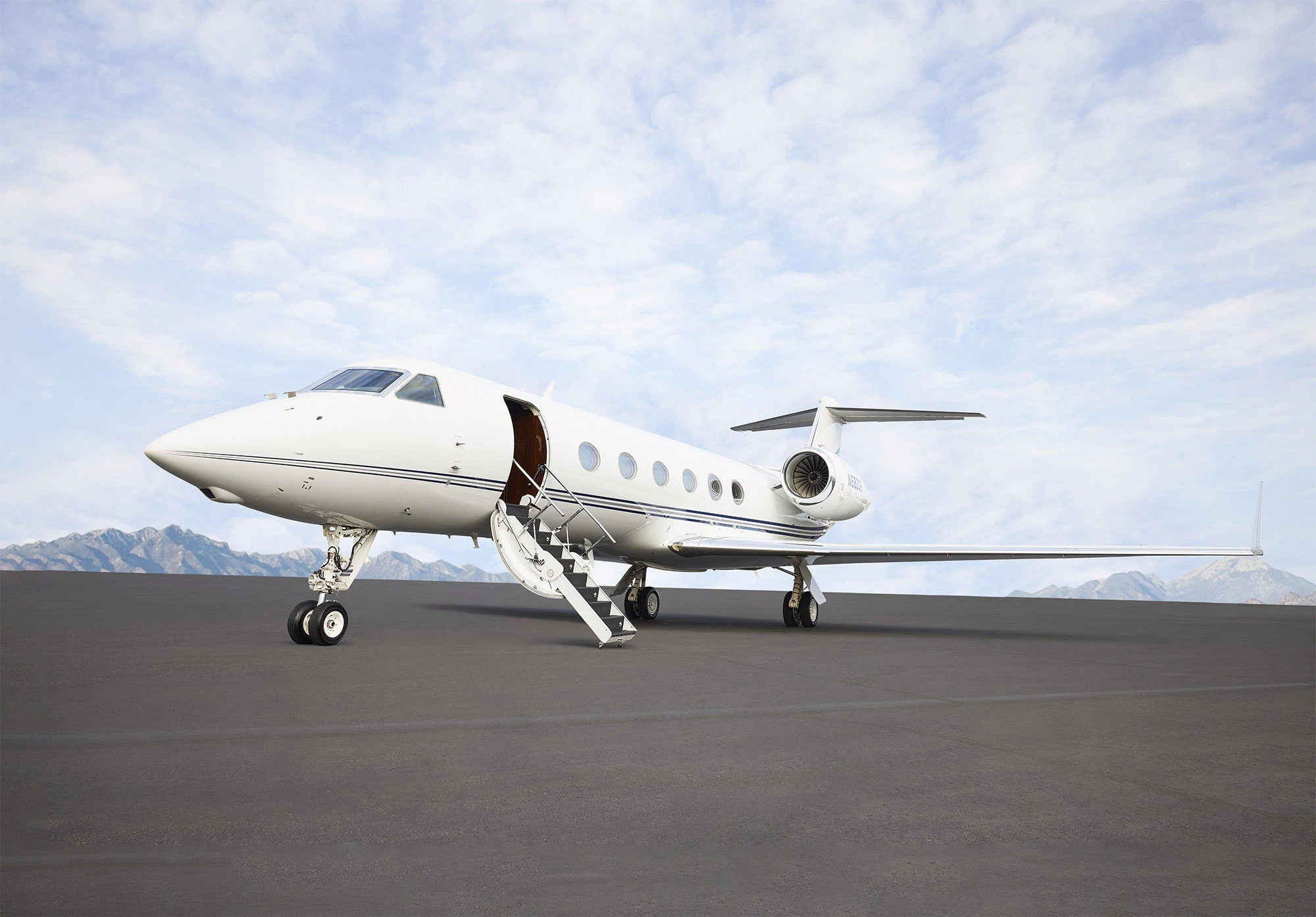

Strip & New Paint January 2015 @ Gulfstream – Appleton

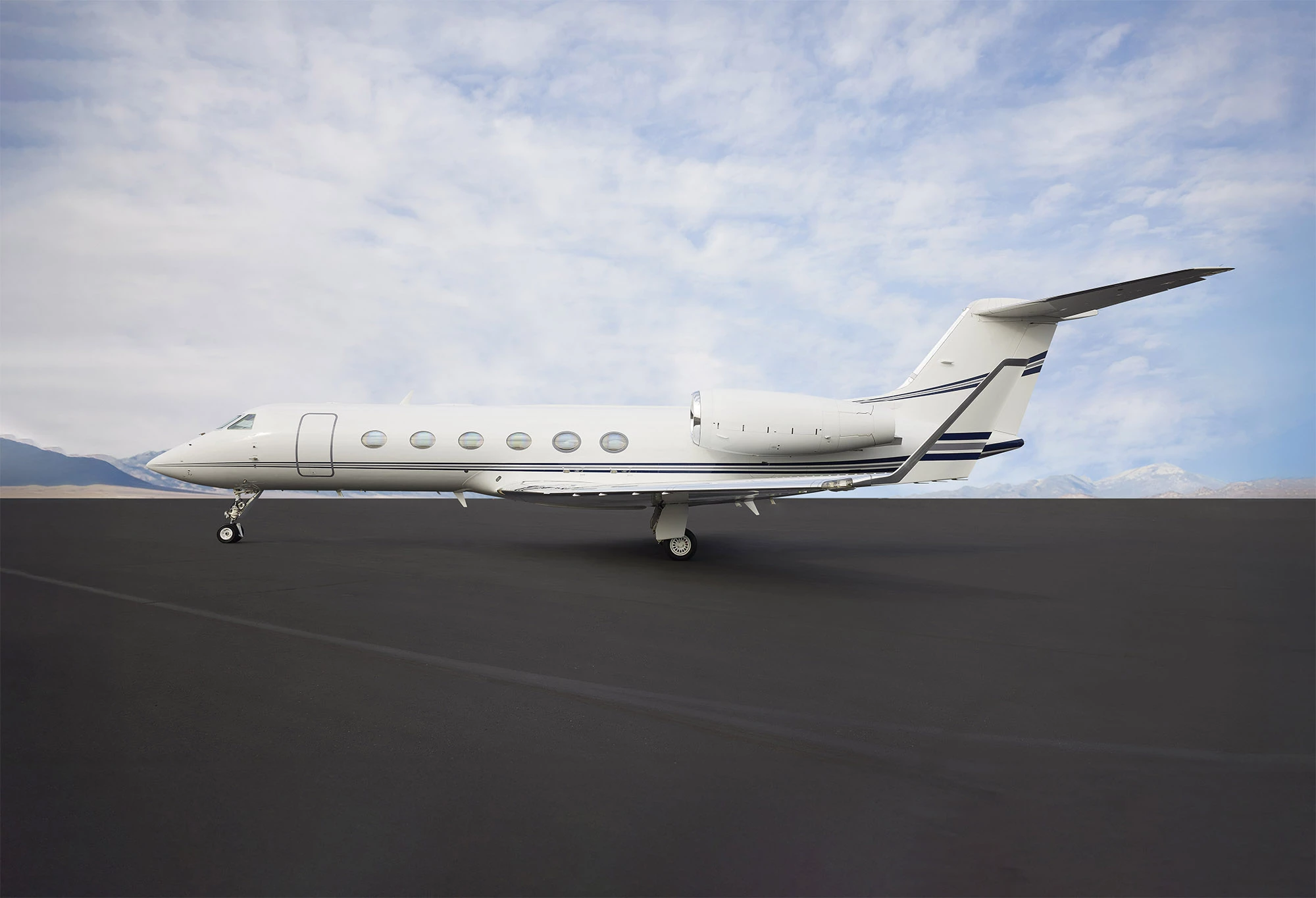

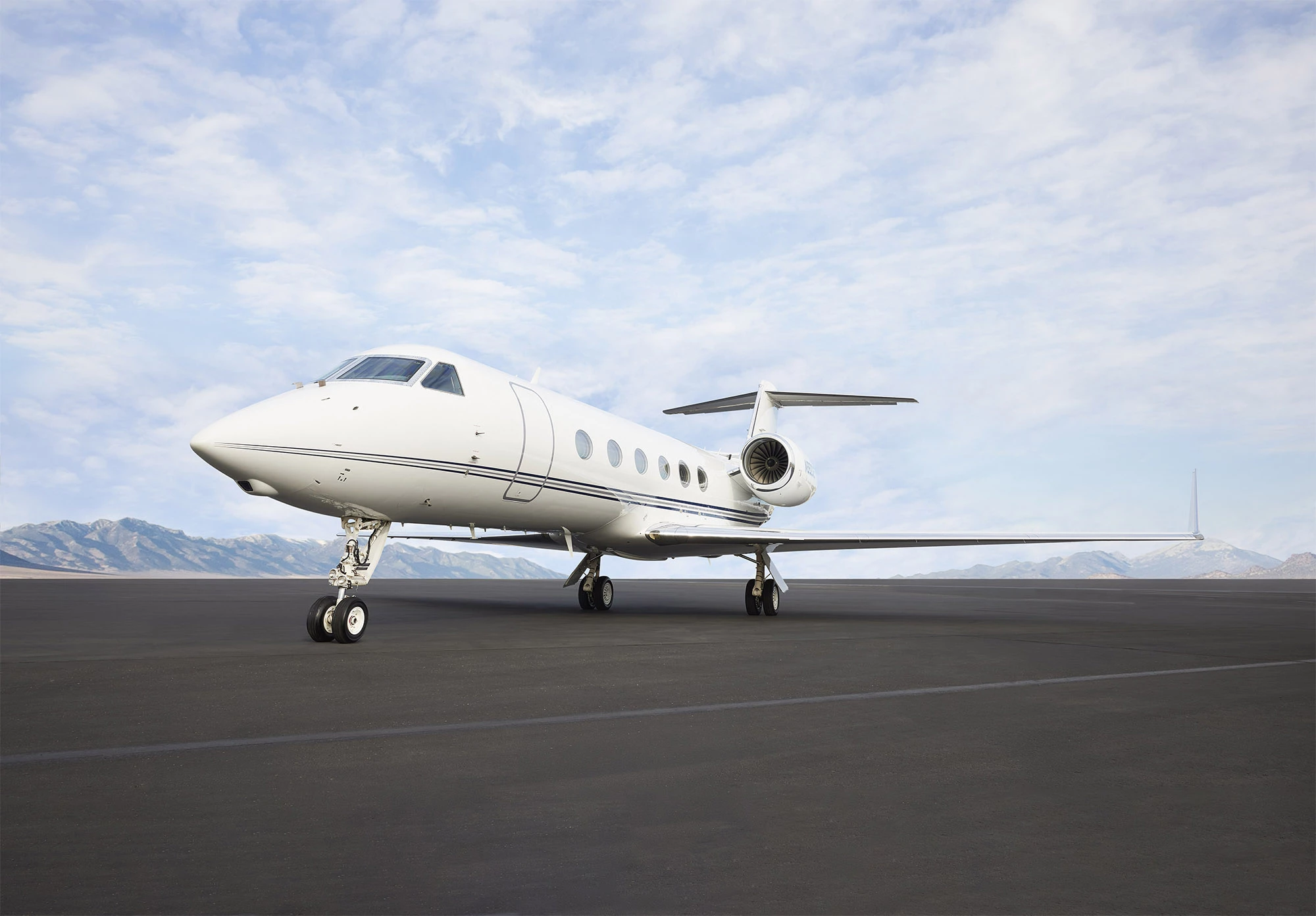

Overall Matterhorn White w/Blue & Gray Accent Stripes

Engines Hard Time & Enrolled on Rolls-Royce CorporateCare Enhanced
APU Enrolled on Honeywell MSP Gold
Enrolled on Honeywell MSP Avionics & MSP Mechanical Components w/
Extended DU-1310 Coverage (formerly HAPP)
Maintained & Operated per FAR 135 by Jet Aviation
Maintenance Records Tracked on Gulfstream CMP
On MSG-3 Maintenance Program

WEIGHTS:

Empty Weight: 42,295 Lbs.
Basic Operating Weight: 43,768 Lbs.
Maximum Zero Fuel Weight: 49,000 Lbs.
Maximum Fuel: 29,500 Lbs.
Maximum Takeoff Gross Weight: 74,600 Lbs.
Maximum Landing Gross Weight: 66,000 Lbs.
Maximum Ramp Gross Weight: 75,000 Lbs.

ADDITIONAL FEATURES, OPTIONS & UPGRADES:

Aircell Axxess II Satellite Phone
ARINCDirect Data Link
Microwave Oven
High Temp Oven
Food Chiller
Dual Coffee Makers

MAJOR AIRCRAFT SERVICE CHANGES, ENHANCEMENTS, & UPGRADES:

• ASC 001D Digital Flight Data Recorder System Upgrade (88 Parameters)
• ASC 007C Maximum Landing Gross Weight - 58,500 Pounds - Category C - Provisions
• ASC 008B Maximum Zero Fuel Gross Weight 48,000 Pounds – Placard Installation
• ASC 016 Maximum Take-Off Gross Weight (MTOGW) Increase
• ASC 021 Lightning Sensor System Installation
• ASC 037B Synthetic Vision - Primary Flight Display (SVPFD) Installation
• ASC 046A Micro Quick Access Recorder (QAR) Installation

• ASC 059D Enhanced Navigation:
o Future Air Navigation System (FANS 1/A+) CPDLC
o Wide Area Augmentation System (WAAS) w/ LPV Approaches
o Circling Approaches
o Temperature Compensated VNAV
o Peaks Display
o Electronic Terminal Charts (Certified Paperless Flight Deck)
o Short-Range/Long-Range Navigation (SRN-LRN) Automatic Preview & Transition
o Honeywell Inertial GPS Hybrid (HIGH) Step 1 IRU Upgrade
o Enhanced Global Positioning System (GPS)

• ASC 066 Communication Management Function (CMF) – SATCOM Direct Datalink

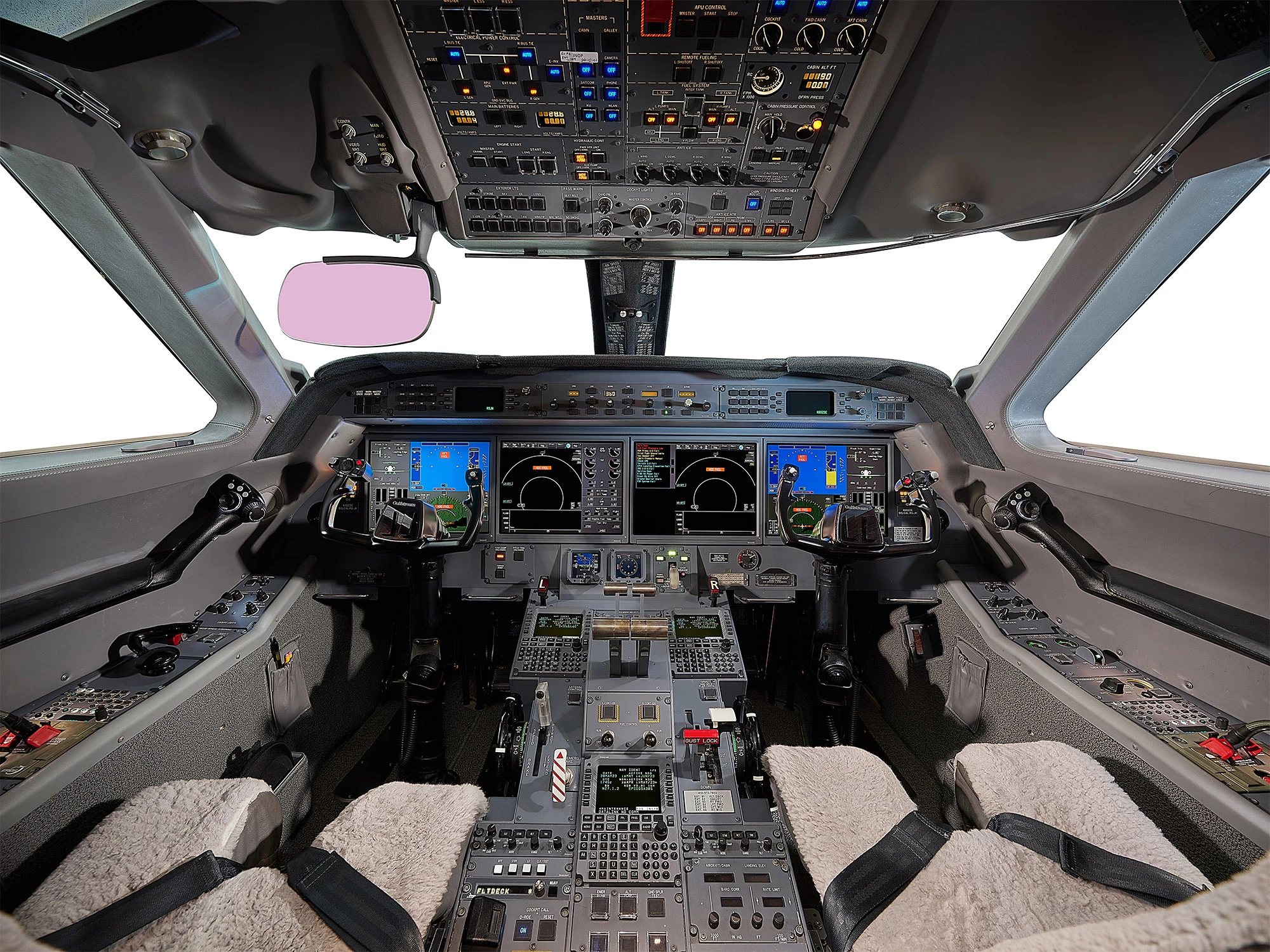

• ASC 070B PlaneView Avionics Enhancement
• ASC-076 Engine Electronic Controller - T5.2 Software Upgrade
• ASC 077 TCAS 7.1 Installation
• ASC 079B Automatic Dependent Surveillance - Broadcast (ADS-B) Out Install v2 (DO-260B)
• ASC 080 Low Pressure Cooling AIR Outlet (LPCAO) – Seal Replacement
• ASC 084A Comm / Nav (ATA 23 / 34) Mandates Package (CPDLC / ADS-B Out)
• ASC-085 Aft Pylon Rib Assembly – Drainage Rework
• ASC 086 Flap & Stabilizer Electronic Control Unit – Software Upgrade
• ASC 089 Elevator Hardover Prevention System (HOPS) - Improvement
• ASC 094B Nose Landing Gear (NLG) Harness - Installation
• ASC 095 Baggage Door Striker Plates – Replacement
• ASC 097 Integrated Drive Generator (IDG) Feeder Cable Clamp
• ASC 099C PlaneView Avionics Enhancement
• ASC 100 Nose Landing Gear Electrical Harness & Hydraulic Brake Line Chafing – Mod.
• ASC 103B Equipment and Furnishings (ATA 25) - Flashlights - Replacement
• ASC 104A Junction Panel Relay Obsolescence Mod.
• ASC 107 Auxiliary Hydraulic Pump – Grounding Installation
• ASC 912C PlaneView Master Operating System Software Update
