Engines Enrolled on ESP Platinum
APU Enrolled on MSP Gold
Honeywell EASy II+ (Cert. 5)
Gogo AVANCE L5 Internet System
U.S. Based
Synthetic Vision
Currently Operated Part 135

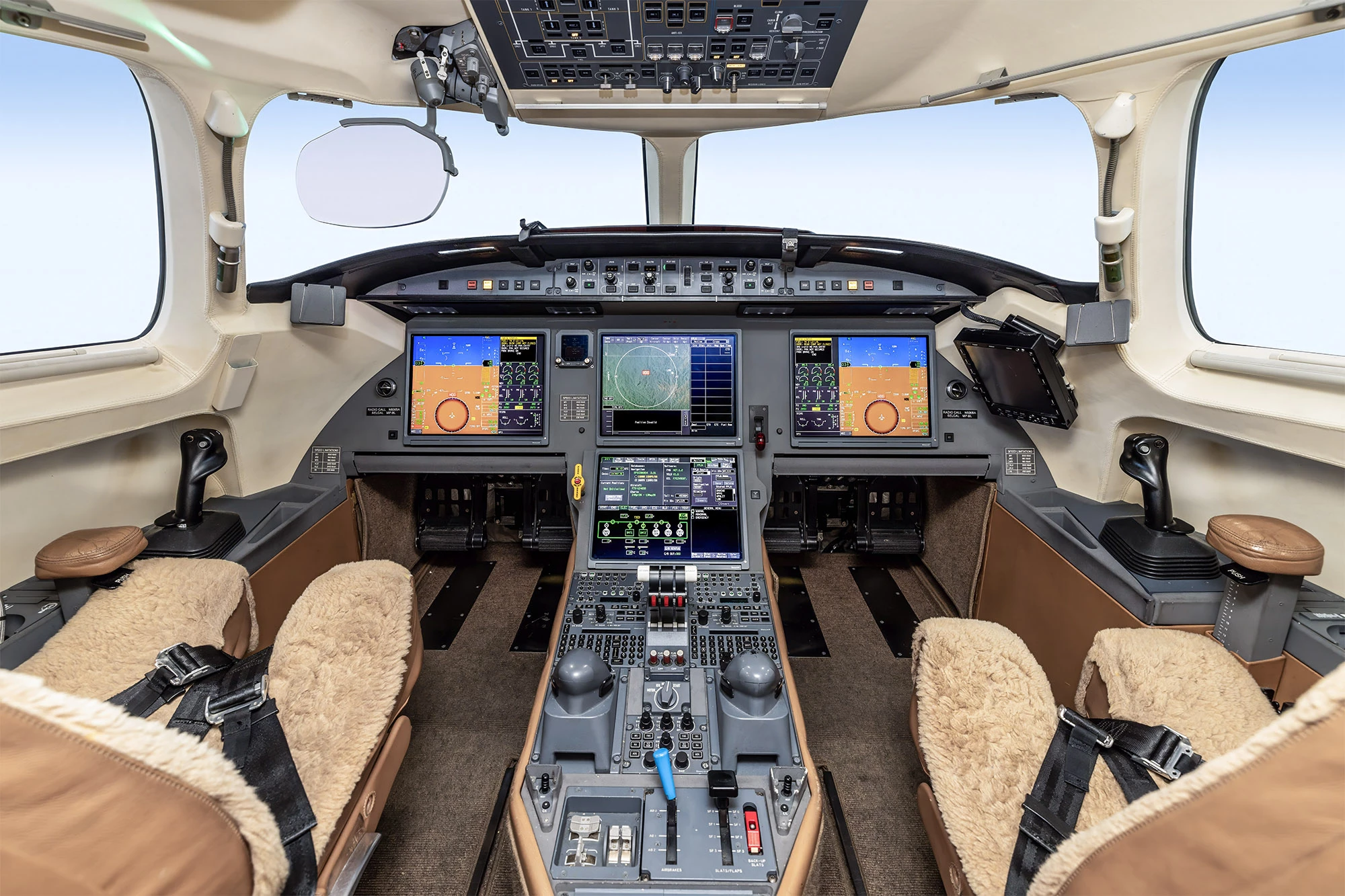

Honeywell Primus Epic Avionics Suite – EASy II+ Cert. 5
COMMUNICATIONS: Dual Honeywell TR-866B w/ 8.33 kHz Spacing
COMMUNICATION: Honeywell TR-866B Third Radio
AUDIO: Triple Honeywell AV-900 Flight Deck Audio
COMMS MANAGEMENT: Honeywell EASy / AFIS / SATAFIS / MILTOP Flight Deck Printer
SATCOM: AFIS/SAT AFIS/MCS-7120 Inmarsat Aero H+/Swift Broadband (WiFi)
VHF NAVIGATION: Dual Honeywell NV-877A VOR / ILS / Marker Receiver
ADF: Dual Honeywell DF-855 ADF Receiver
INERTIAL REFERENCE: Triple Honeywell Laseref V Micro Inertial Reference Unit

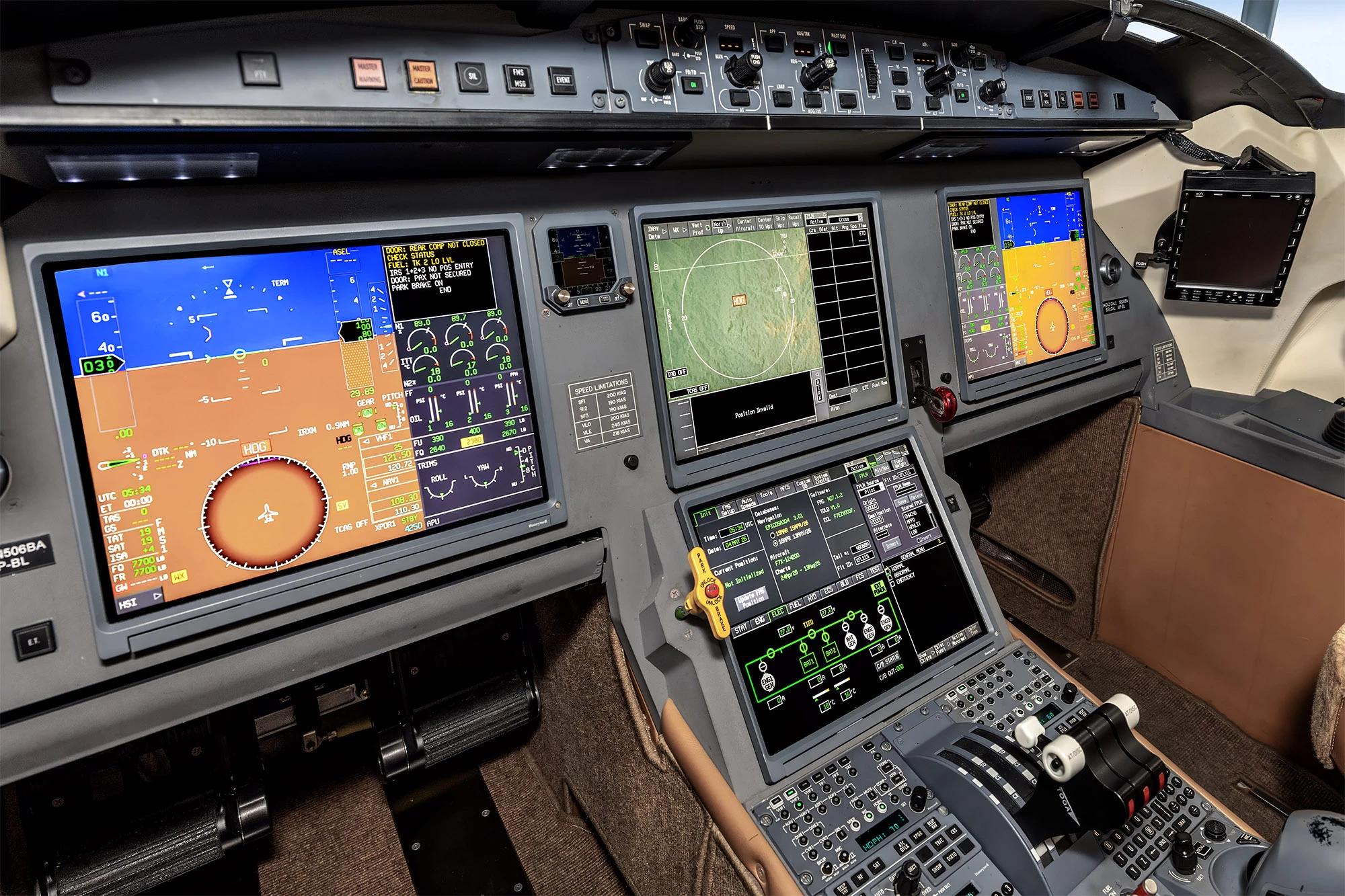

DISPLAY UNITS: 4- Honeywell DU-1310 Display Units
RADAR: Honeywell Primus 880 Turbulence Detection Radar System
LIGHTNING SENSOR: Honeywell LSS-860 Lightning Sensor
TRANSPONDER: Dual Honeywell XS-858A Mode S Diversity w/ Enhanced Surveillance Capability /
ADS-B OUT / ADS-C
DME: Dual Honeywell DM-855 Distance Measuring Equipment
RADIO ALTIMETER: Honeywell KRA-405B Radar Altimeter
AIR DATA COMPUTER: Dual Honeywell AZ-200 Air Data Computer
AHRS: Dual Honeywell KSG-7200 Altitude Heading Reference System FMS / GPS Dual Honeywell
Flight Management System
GPS SENSOR: Honeywell GPS Sensor (SBAS Capable)
DATALINK: Honeywell CPDLC FANS 1/A (Future Air Navigation System)
CVR: Honeywell SSCVR Cockpit Voice Recorder (2 Hour) RIPS Compliant
FDR: Honeywell SSFDR Flight Data Recorder
TCAS: L3 Communications ACSS TCAS 3000 Traffic Alert and Collision Avoidance System (7.1)
EGPWS: Honeywell EASy EGPMW-100 Enhanced Ground Proximity Warning System w/ Windshear
ELT: Honeywell Rescue 406AF Emergency Locator Transmitter
H.U.D: Honeywell HGS-5860 Heads-Up Display (CAT 1 & II Monitoring)
TELEPHONE: Iridium AirCell Axxess II Phone
HF: Dual Honeywell HF-1050 Radios w/ SELCAL
New May 2012 @ Dassault – Little Rock, AR

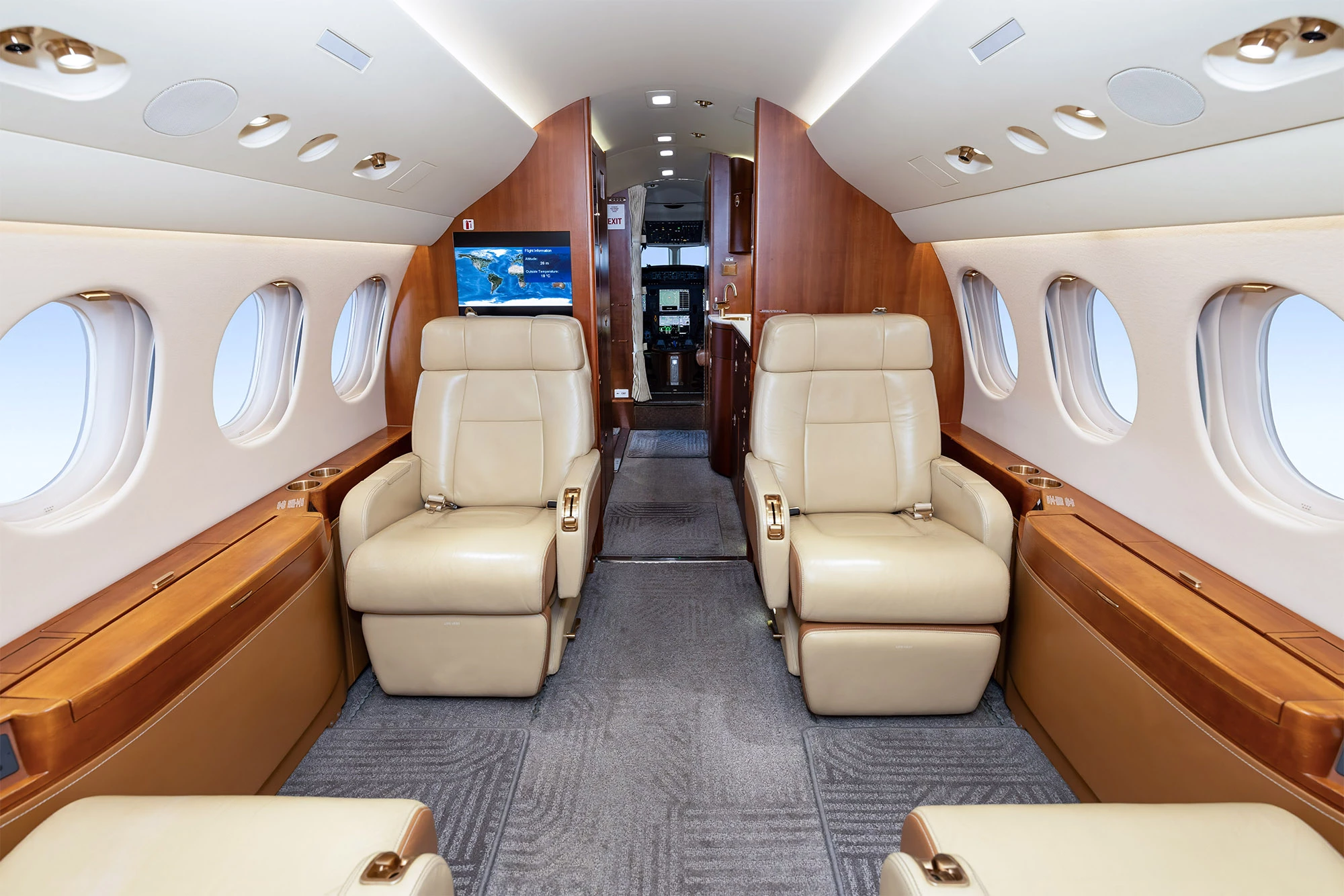

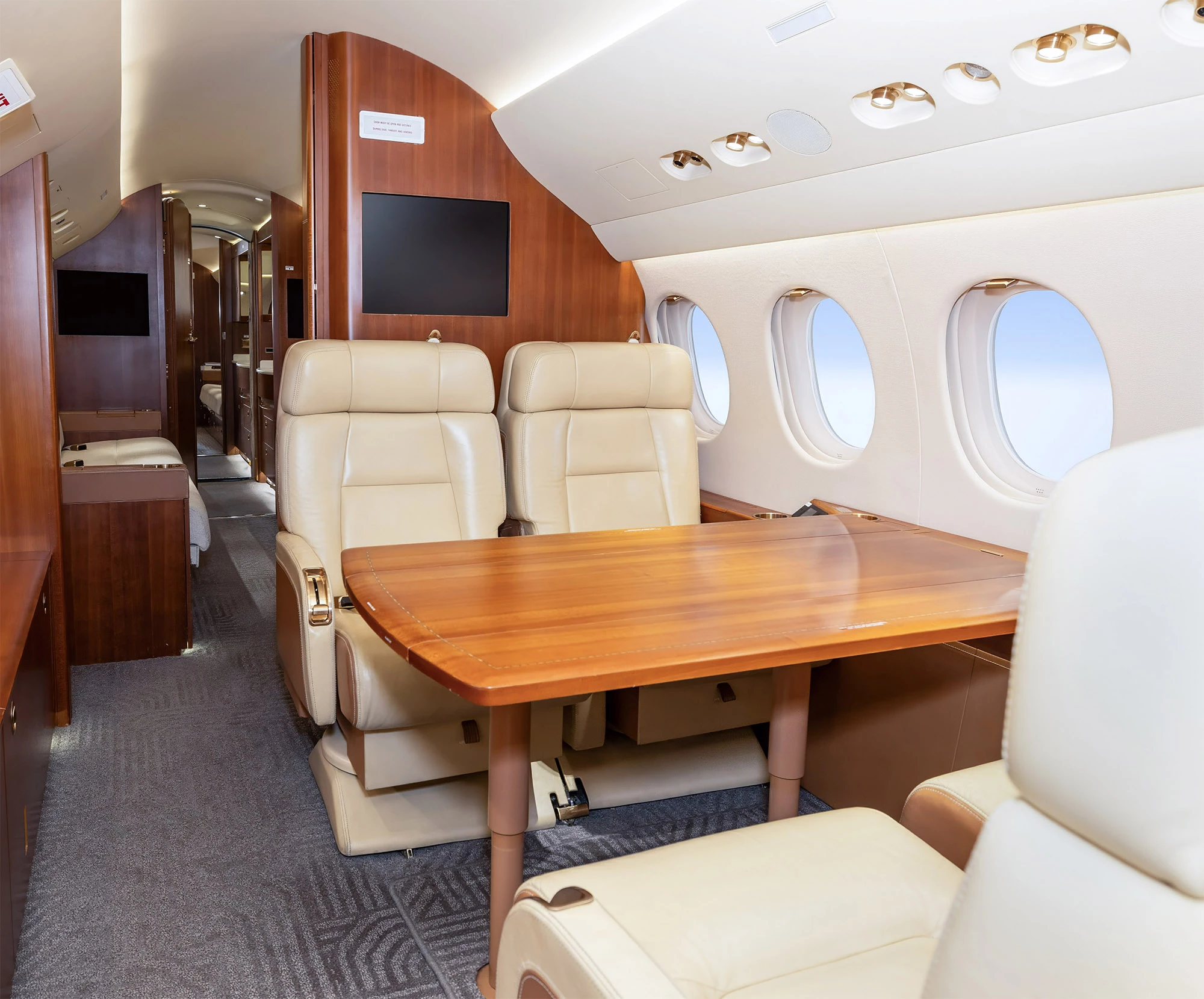

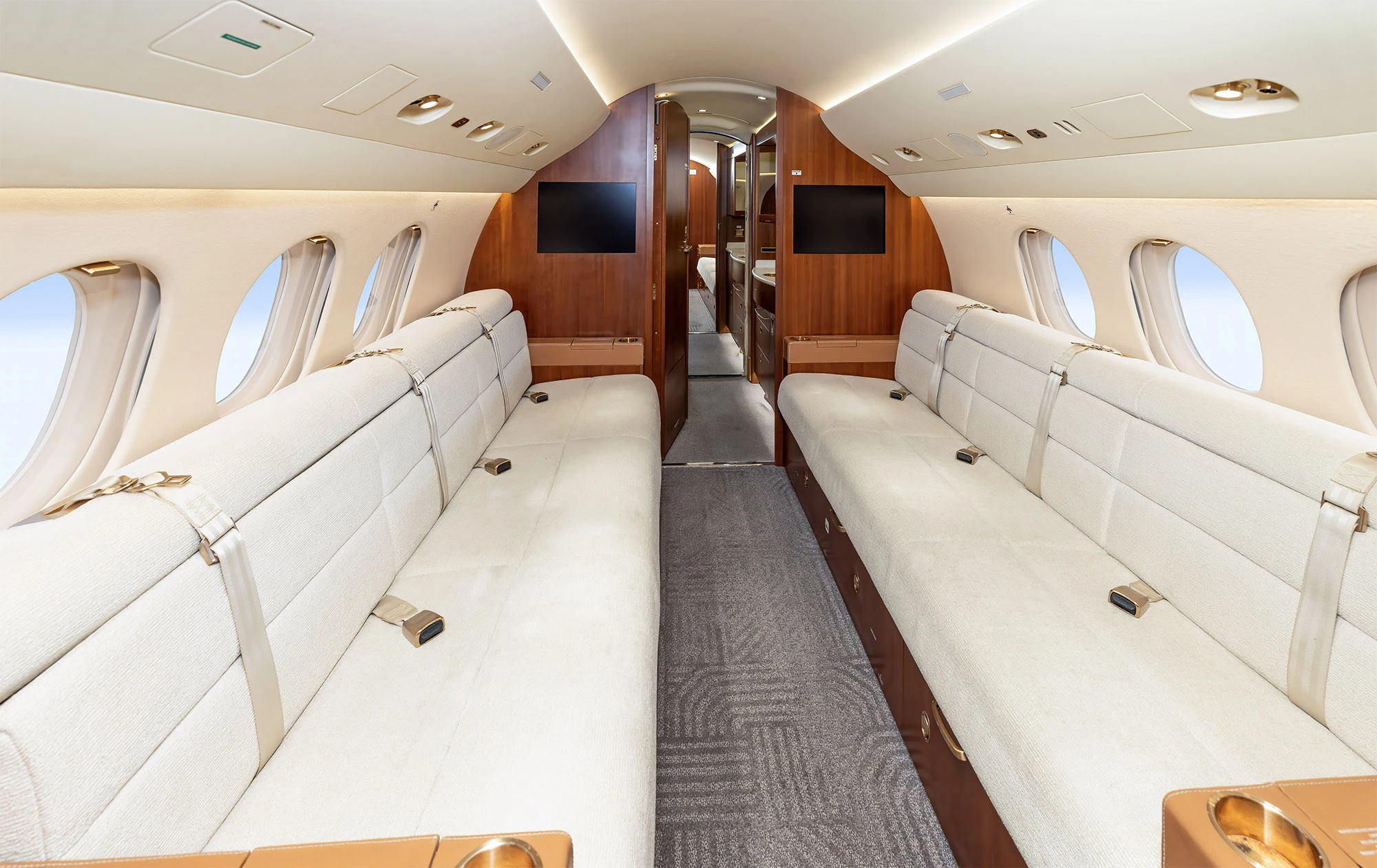

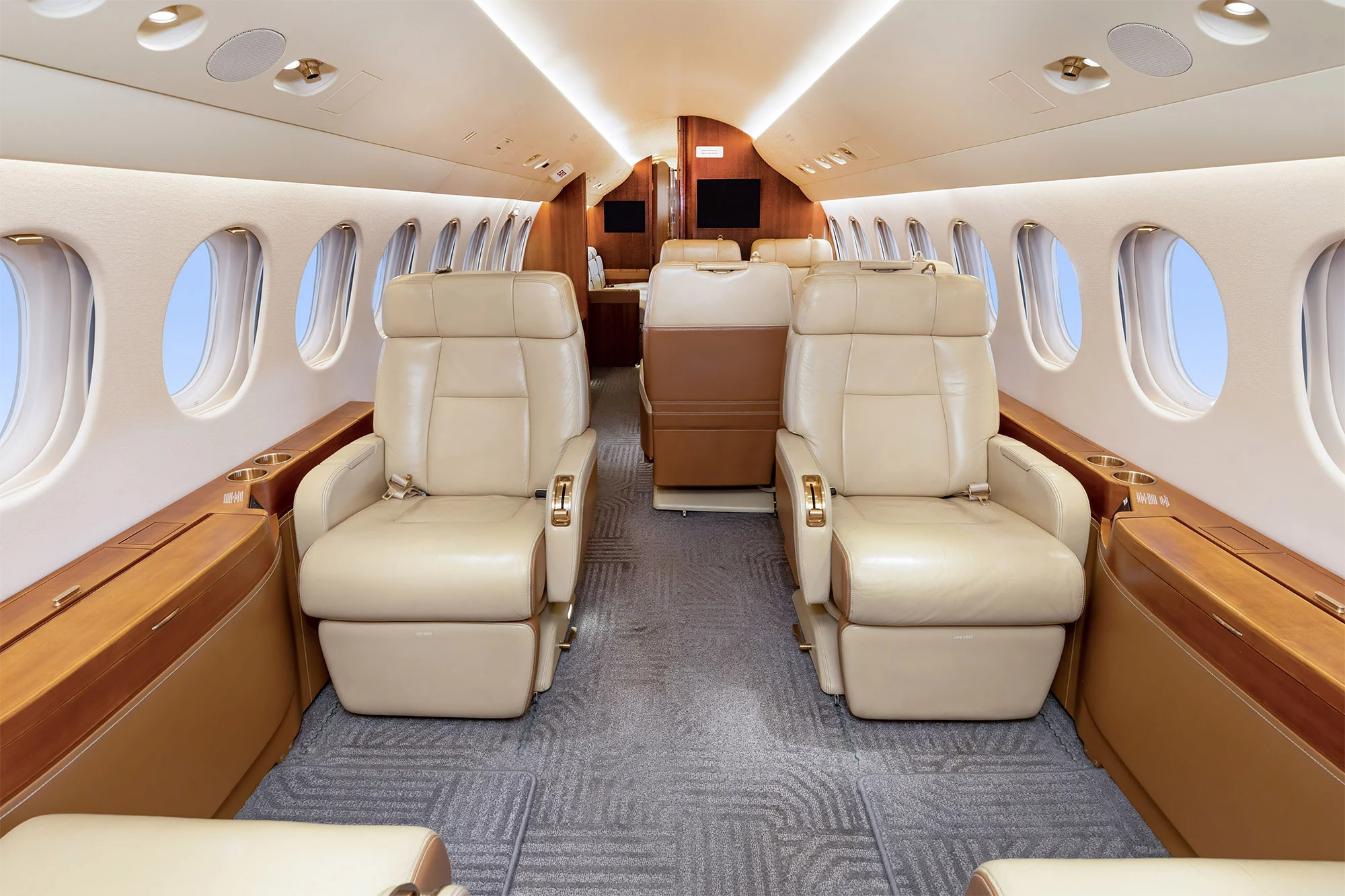

Fourteen (14) passenger configuration includes Forward Cabin Double Club, Mid Cabin Conference Group opposite a Multi-Purpose Storage Credenza, Followed by Two (2) Three (3) Place Aft Divans. Fully Enclosed Forward Crew Lavatory and Private Aft Passenger Lavatory. Right-Hand 50 Inch Galley/Bar Cabinet, 50 Inch Galley Upper Section with a Single, Extra Wide, High Temperature Oven w/ Digital Controller located on the door, TIA Microwave Oven, Manual Fill Nespresso Machine, Storage Racks, Two Thermal Carafes on a pull-out platform, and Storage for standard Glassware. Lower Section includes a Sink, Faucet w/ Drain Rod, Wine Storage Rack, Trash Drawer.
Strip & New Paint August 2019 @ Dassault – Wilmington, DE

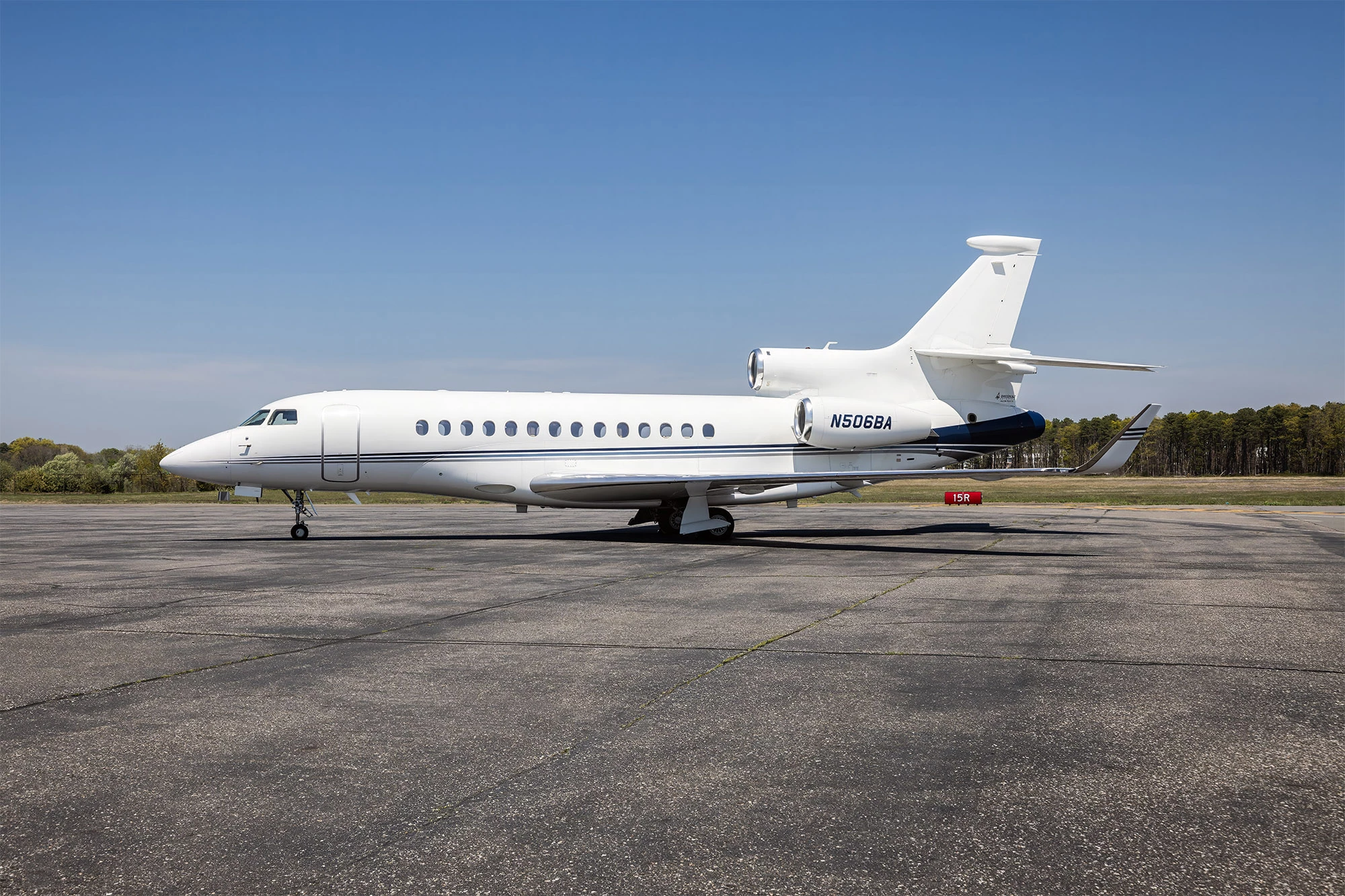

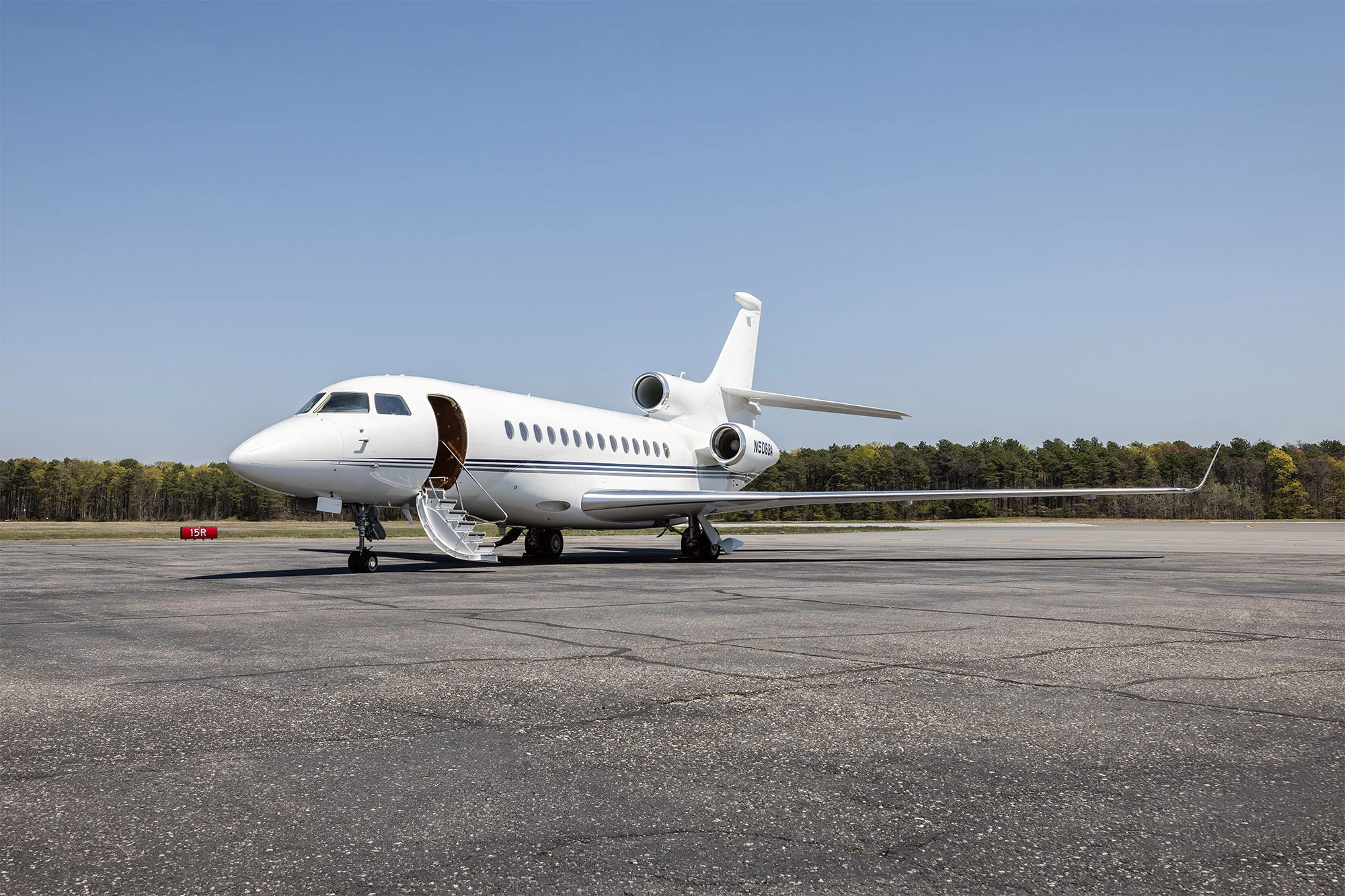

Overall Matterhorn White with Silver Pearl, Arista Blue, and Blue Pearl Accent Stripes.
MAINTENANCE:
Engines Enrolled on ESP Platinum
APU Enrolled on MSP Gold
Enrolled on Honeywell MSP Avionics
Maintenance Tracked on CAMP
WEIGHTS:
Gross Weight (Ramp): 70,200 lbs.
Max Take Off Weight: 70,000 lbs.
Max Landing Weight: 62,400 lbs.
Max Zero Fuel Weight: 41,000 lbs.
Basic Empty Weight: 35,000 lbs
INSPECTIONS:
1C Inspection CW 08/2019 Due 08/2027
2C & Landing Gear Overhaul Due 05/2027
3C Inspection Due 05/2035
Honeywell EASy Autothrottle
Honeywell Central Maintenance Computer
Meggitt MK2 Secondary Flight Display
KGS Electronics SB200 (x) 230 VAC 50 HZ 2000VA Inverter
Avionics Master System
Cabin and Galley Masters
Main Batteries Charging w/ GPU
Mini Load Master System
Cabin Temp Monitoring System
(2) Vertical Fin Teleflex Recognition Lights
CMC-CMA-1100 Pilot View Electronic Flight Bags (EFB)
Uplink Weather Capability
CTS Quick Access Recorder
Pratt & Whitney Flight Data Acquisition Storage & Transmission (FAST)
Falcon Broadcast
Brake/Wheel Well Heat
Left Hand (LH) Crew Closet
Frank Janik
