Fourteen (14) Passenger Forward Galley & Crew Rest
Starlink Equipped
Vertical Weather & Predictive Windshear Radar
Head Up Display System (HUD) w/Synthetic Vision System (SVS)
Enhanced Vision System (EVS)
Aircraft Enrolled on Smart Parts Preferred
Engines Enrolled on GE Passport OnPoint
APU Enrolled on Safran Powercare
Rockwell Collins Pro Line Fusion® Avionics Suite w/ V2.2 Software
Four AFD-6520 15.1” LCD Adaptive Flight Displays
Dual Integrated Flight Information System
Head Up Display (HUD) w/ Synthetic Vision System (SVS)
Enhanced Vision System (EVS)
Dual Collins VHF-4000 COMM Radios
Collins VHF-4000 COMM Radio w/ Datalink
Dual Collins NAV-4000 NAV Radios w/ ADF
Dual Collins DME-4000 Distance Measuring Equipment
Four (4) Collins Type A and B (2 ea.) Air Data Computers
Collins TDR-94D Transponder w/ EHS & ADS-B Out
Triple Flight Management System w/ V Speed Database
Dual Collins GPS-4000S w/ SBAS Capability
Triple Honeywell Inertial Reference Units
Collins RTA-4218 Multiscan Weather Radar w/ Vertical Weather Radar & Predictive Windshear
Dual Data Linked Graphical Weather System
Collins Lightning Detection System
Dual Collins Radio Control Unit RIU-4110 w/ Datalink Capability
Dual Collins ALT-4000 Radio Altimeters
Dual Collins HF-9031A HF Communication System
Collins TSS-4100 TCAS w/ Change 7.1
Collins TPM-6000 TAWS
L3 FA5000 Flight Data Recorder
L3 FA5000 Cockpit Voice Recorder w/RIPS
ACR/Artex ELT-4000 Emergency Locator Transmitter
Bombardier Completion, Montreal, December 2018
Fourteen (14) Passenger Forward Galley & Crew Rest Configuration
o Fireblocked; FAA, EASA and TCCA STC
o Enhanced Sound Space Proofing
o Crew & Cabin seats Reupholstered, November 2021 BAS TUS
o New Carpet & Wood Refinished, November 2020 BAS TUS

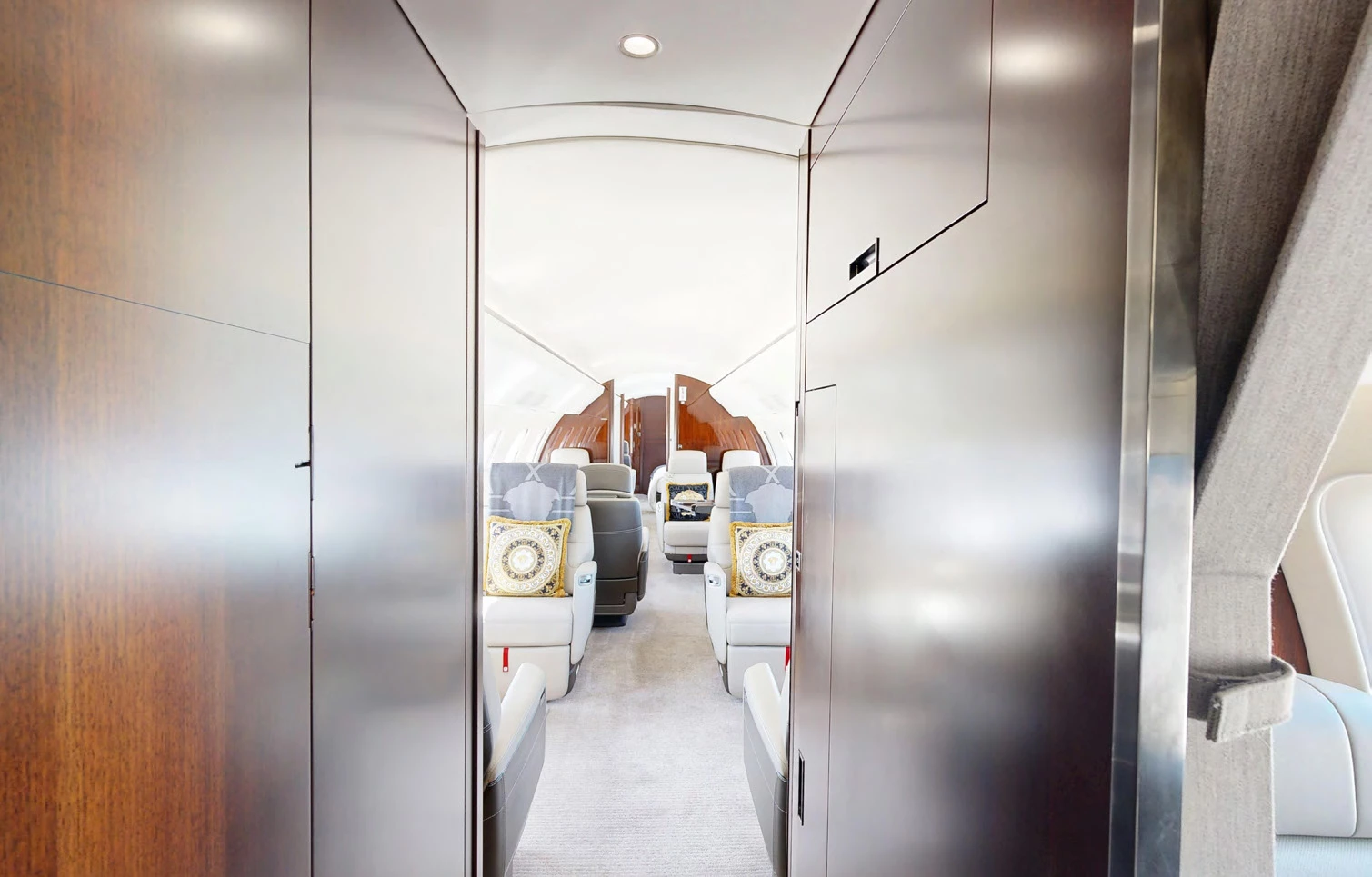

Entrance

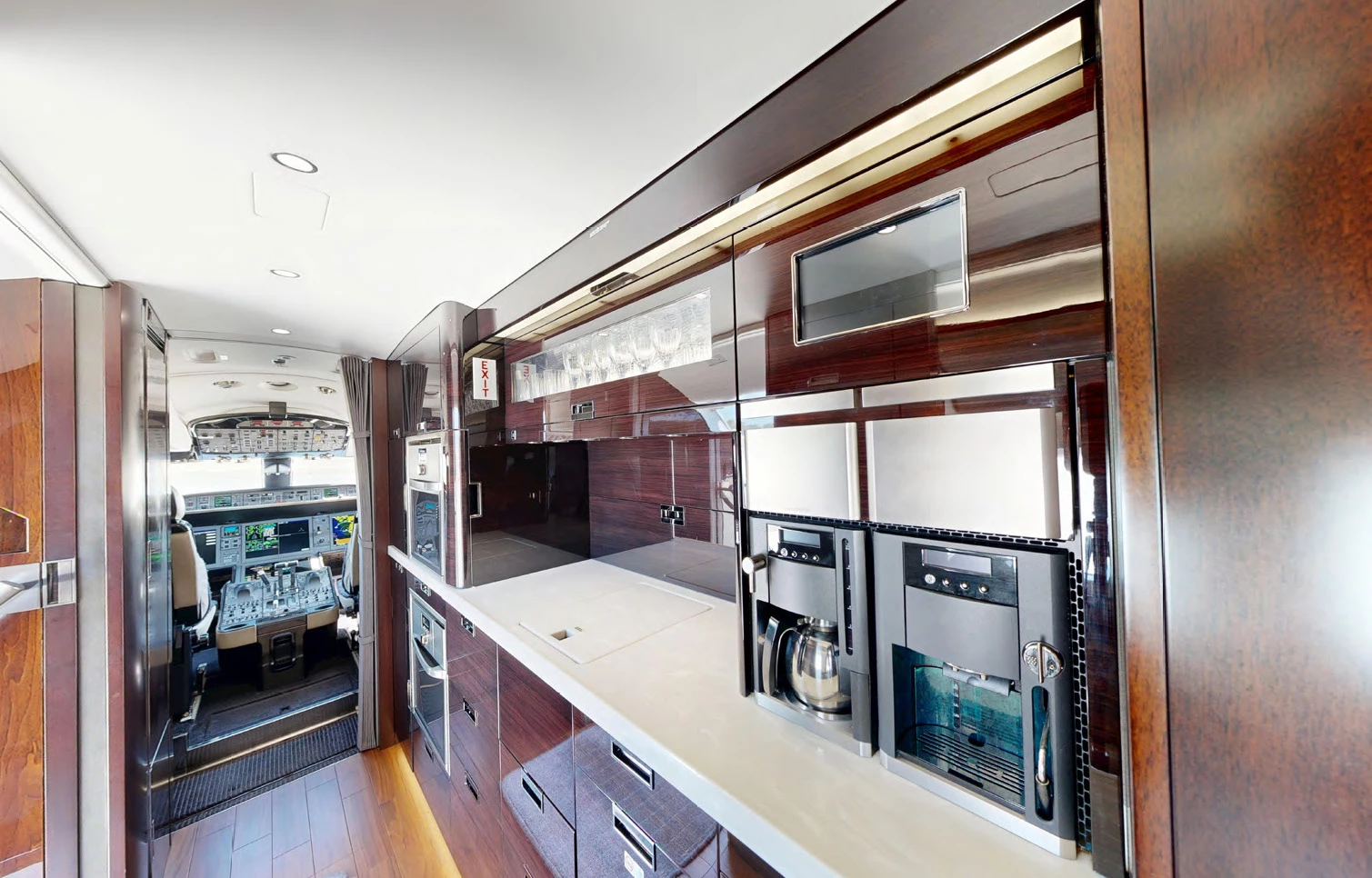

Forward Full Service RH Galley
Crew Rest Area & Crew Lavatory

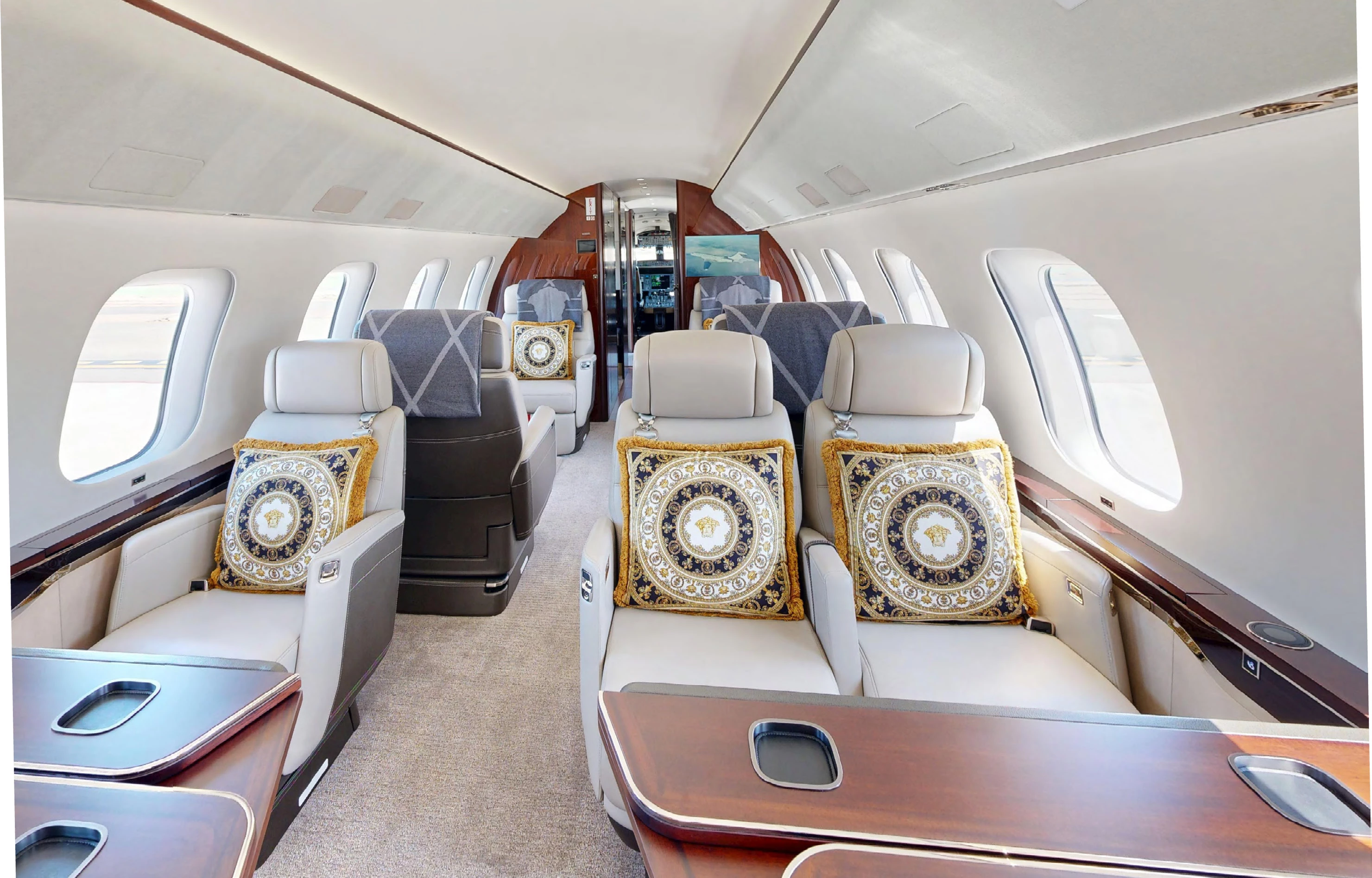

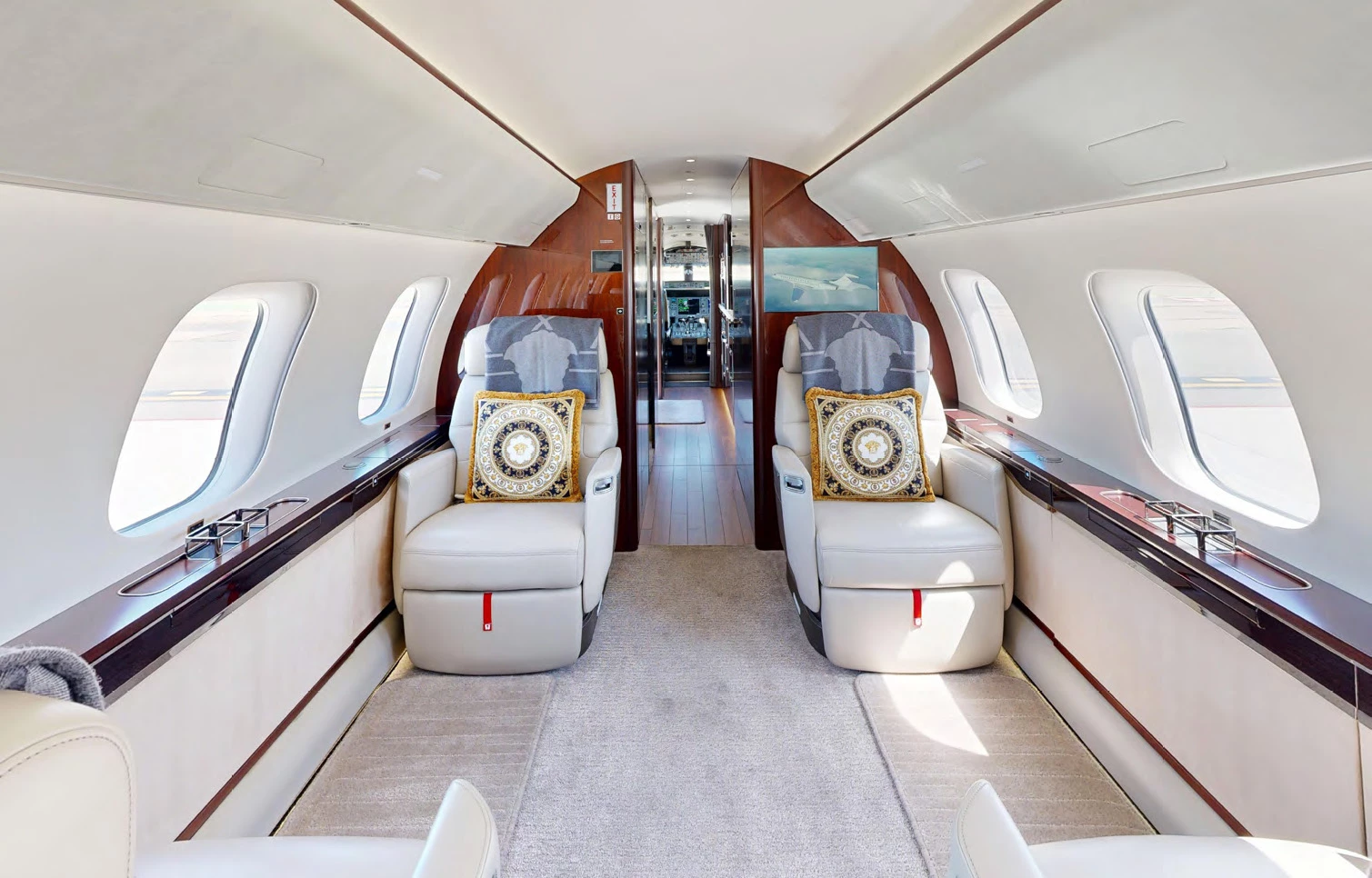

Zone 1 - Club Suite
Four (4) Place Club w/Fold Out Tables.
Zone 2 – Conference & Dining Suite
Two (2) place forward facing and one (1) place aft facing dining seats w/ table on the LH side and two (2) aft facing and one (1) forward facing dining seats with a table on the RH side.

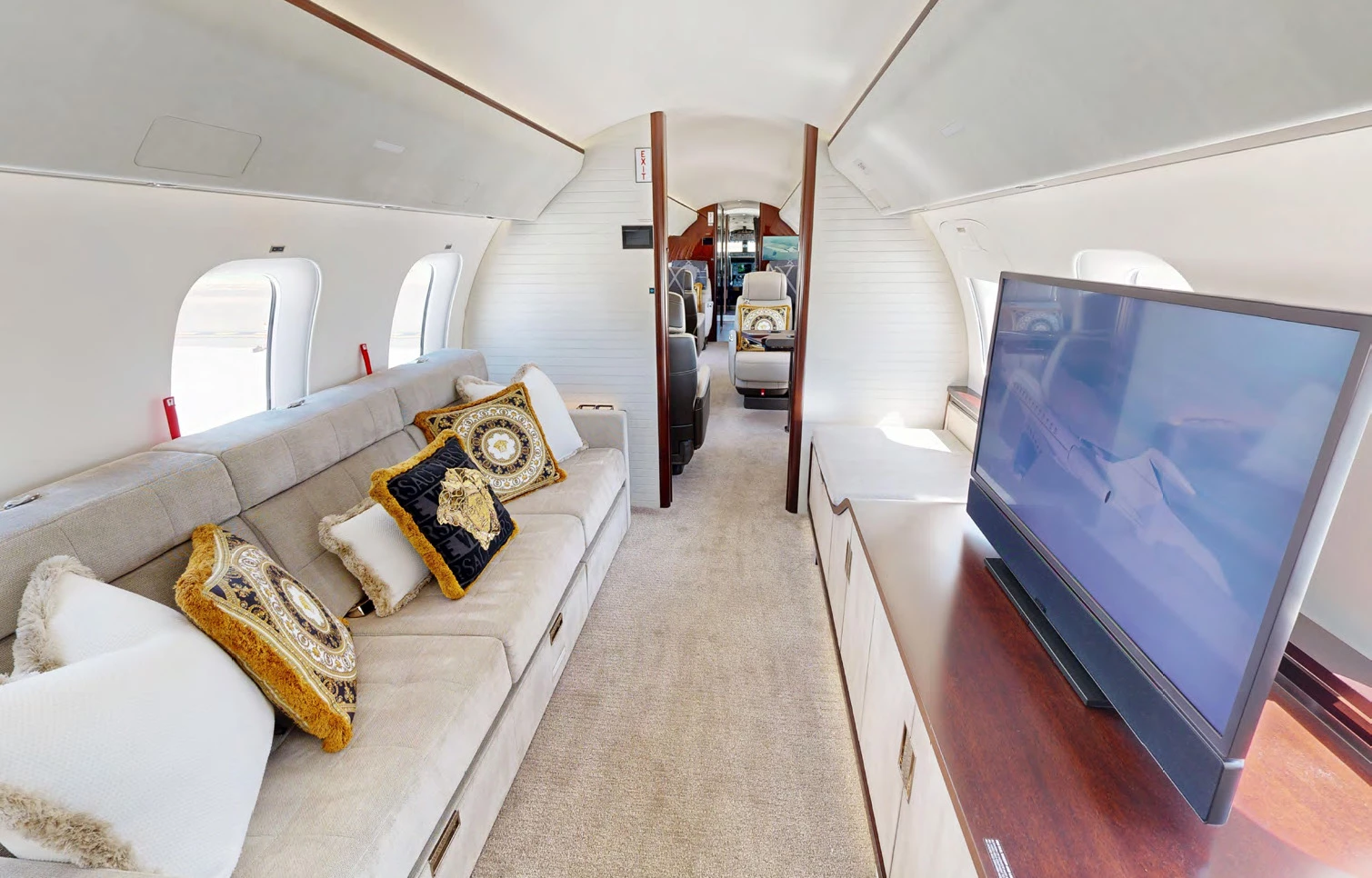

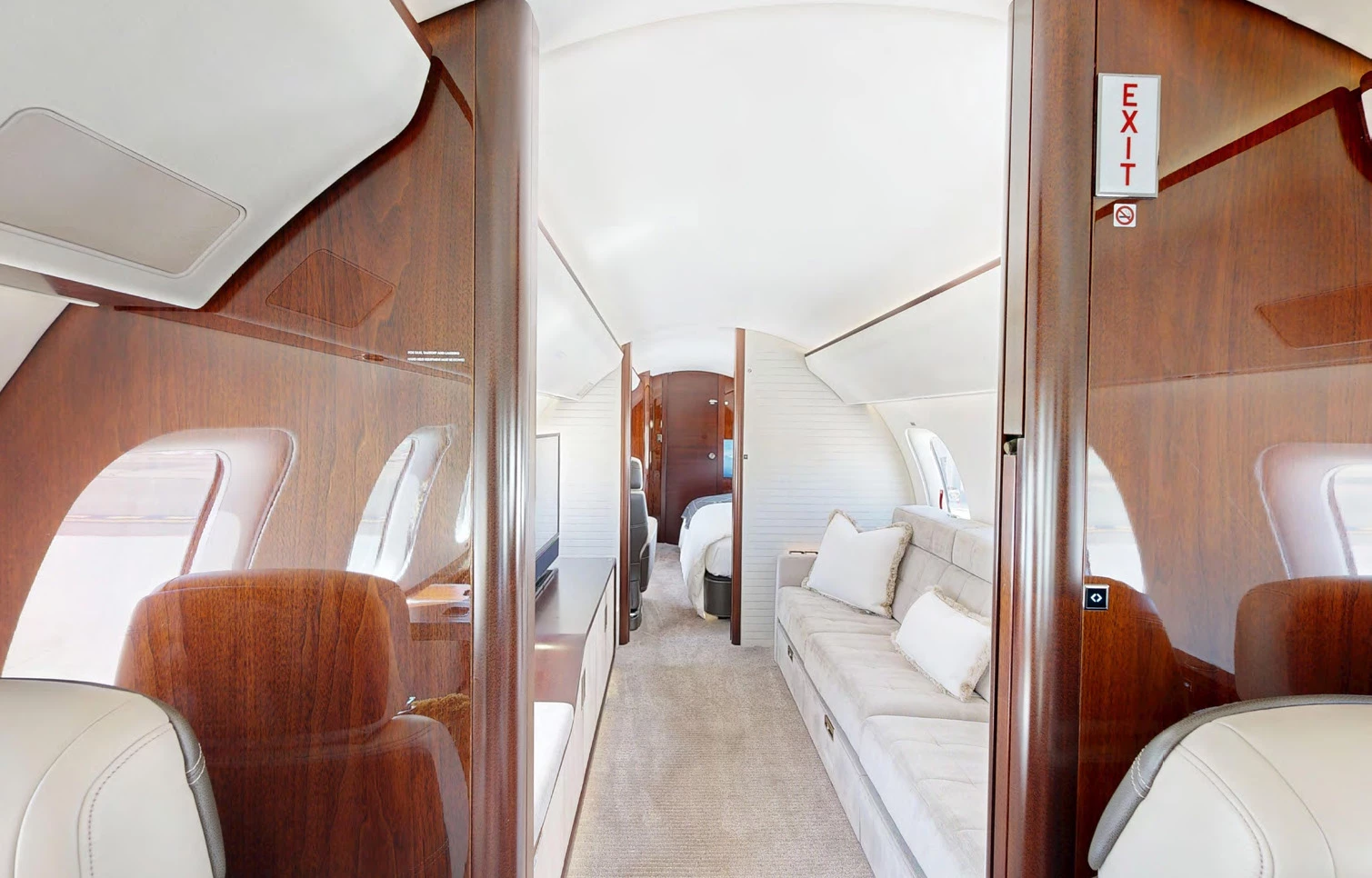

Zone 3 - Entertainment Suite
Three (3) place (2 place for T/T/L) full-berthing divan on the LH side and a credenza with pop-up monitor on the RH side.

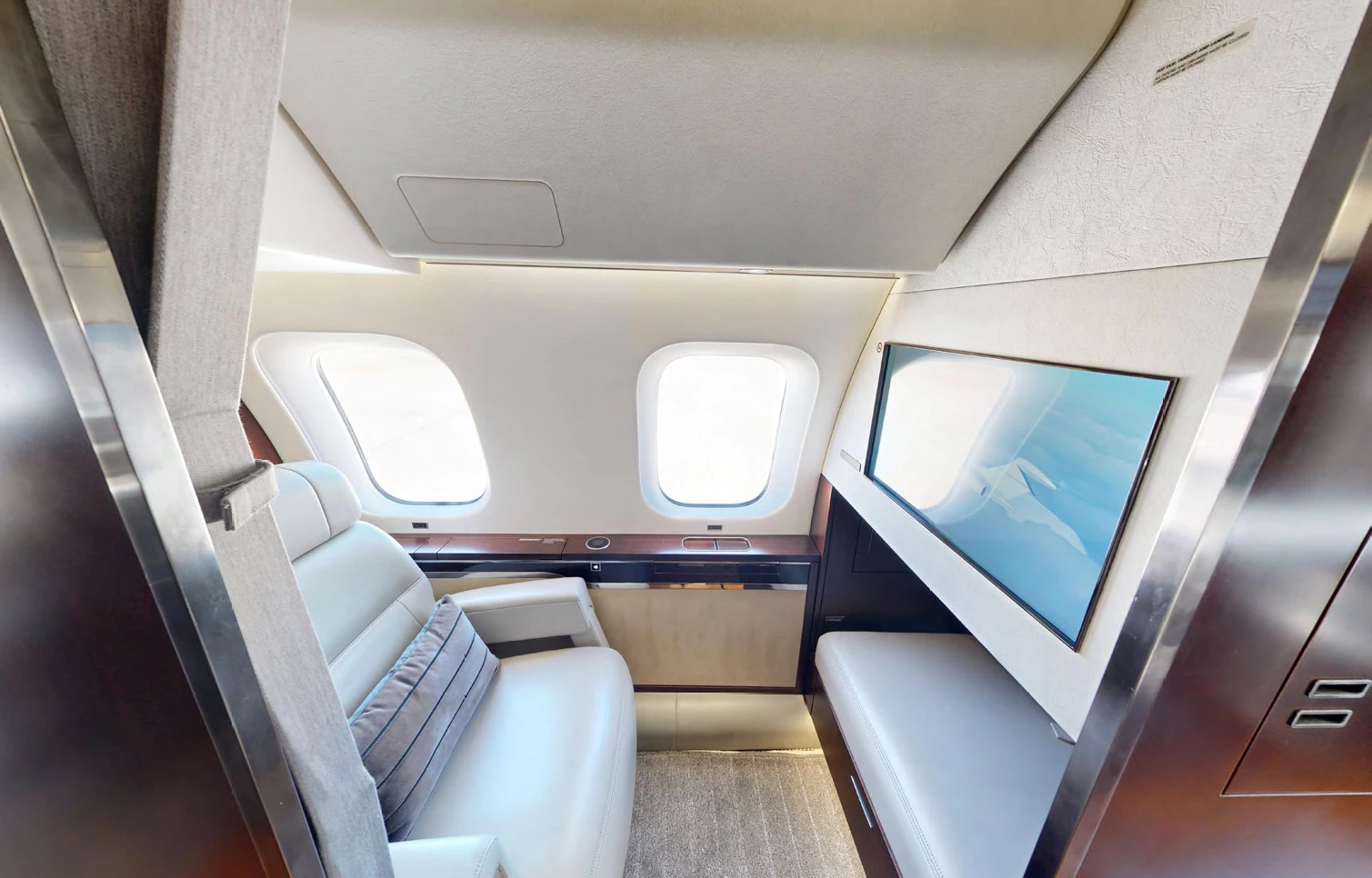

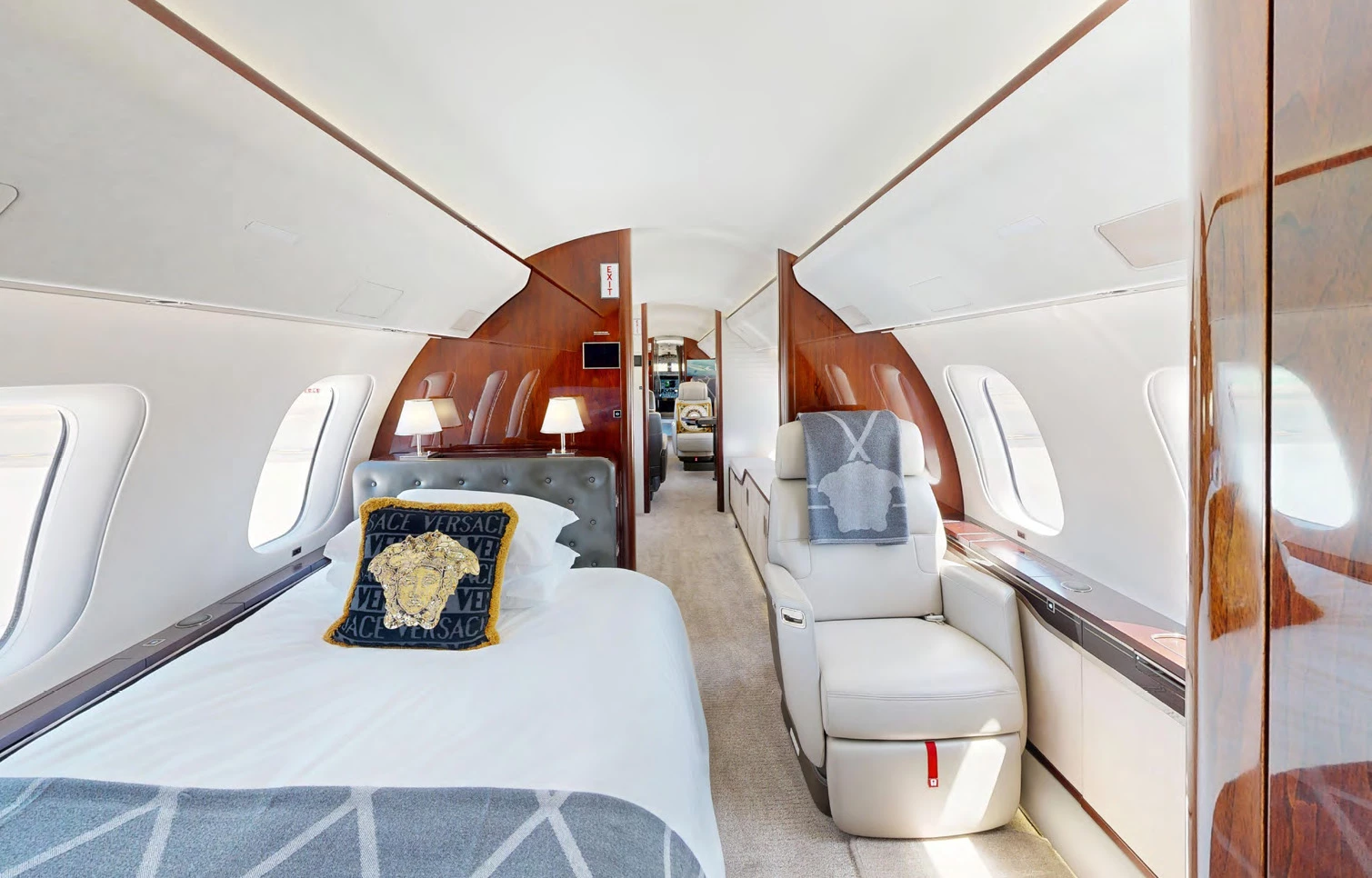

Zone 4 - Principal Suite
Features a bed on the LH side and one (1) club seat with a foldout table on the RH side, Ensuite full lavatory.
CONNECTIVITY & ENTERTAINMENT:
Starlink Equipped
Aspire 300 Dual Channel Iridium Phone System
24” Forward Bulkhead Monitor
40” Credenza Monitor
32” Master Suite Monitor
24” Crew Rest Monitor
HDMI, USB & Bluetooth Inputs
Media Center Unit w/ Blu-ray, DVD, Audio/MP3 CD, AVoD

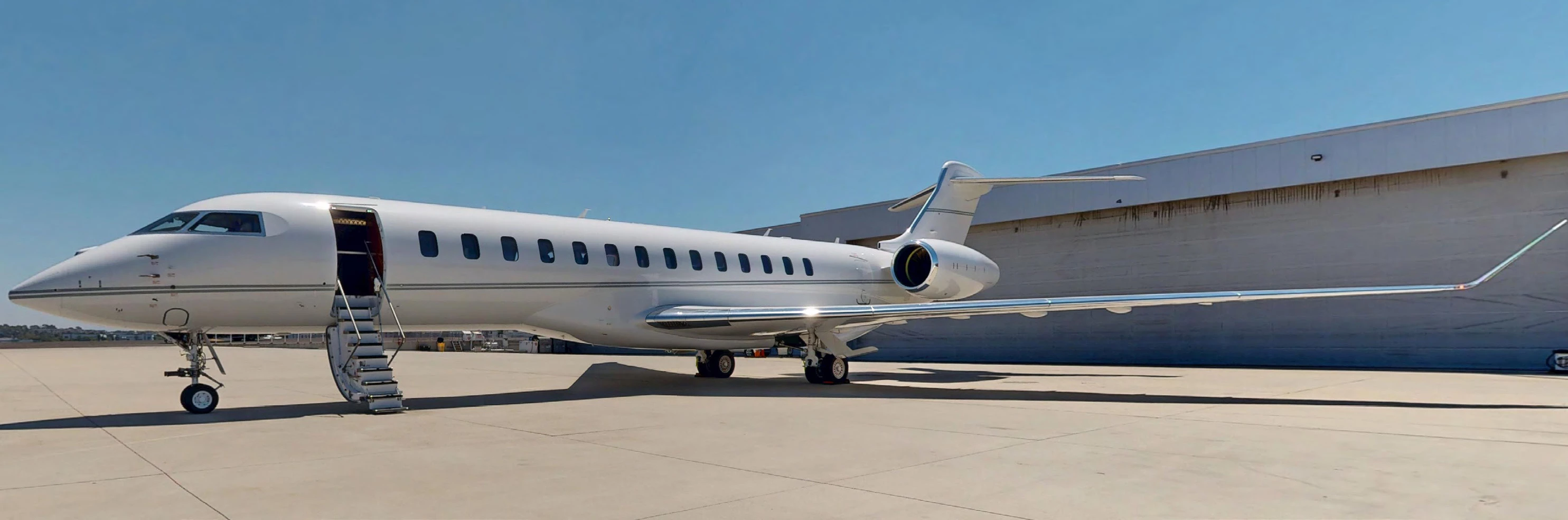

BAS Tucson, November 2021
Overall White w/Gray Accent Striping on Fuselage & Tail.
MAINTENANCE PROGRAMS:
Aircraft Enrolled on Smart Parts Preferred
Engines Enrolled on GE Passport OnPoint
APU Enrolled on Safran Powercare
Enrolled on CAMP Maintenance
WEIGHTS:
Gross Weight (Ramp) 115,100 lbs
Max Take-off Weight 114,850 lbs
Max Landing Weight 87,600 lbs
Max Zero Fuel Weigh 67,500 lbs
Empty Weight 60,047 lbs
FEATURES & OPTIONS:
Aircraft Health Management System w/ V8.2 Software
L3 GH-3900.2 Standby Instrument System
Surface Management System w/ Airport Moving Map
Cockpit Printer
Espresso Maker
Coffee Maker
Microwave
Convection Oven
115V AC Outlets
NAVIGATION & COMPLIANCE:
MNPS, PRNAV, RNP 0.3/1/2/4/10
RVSM Capable
FANS 1/A, CPDLC
